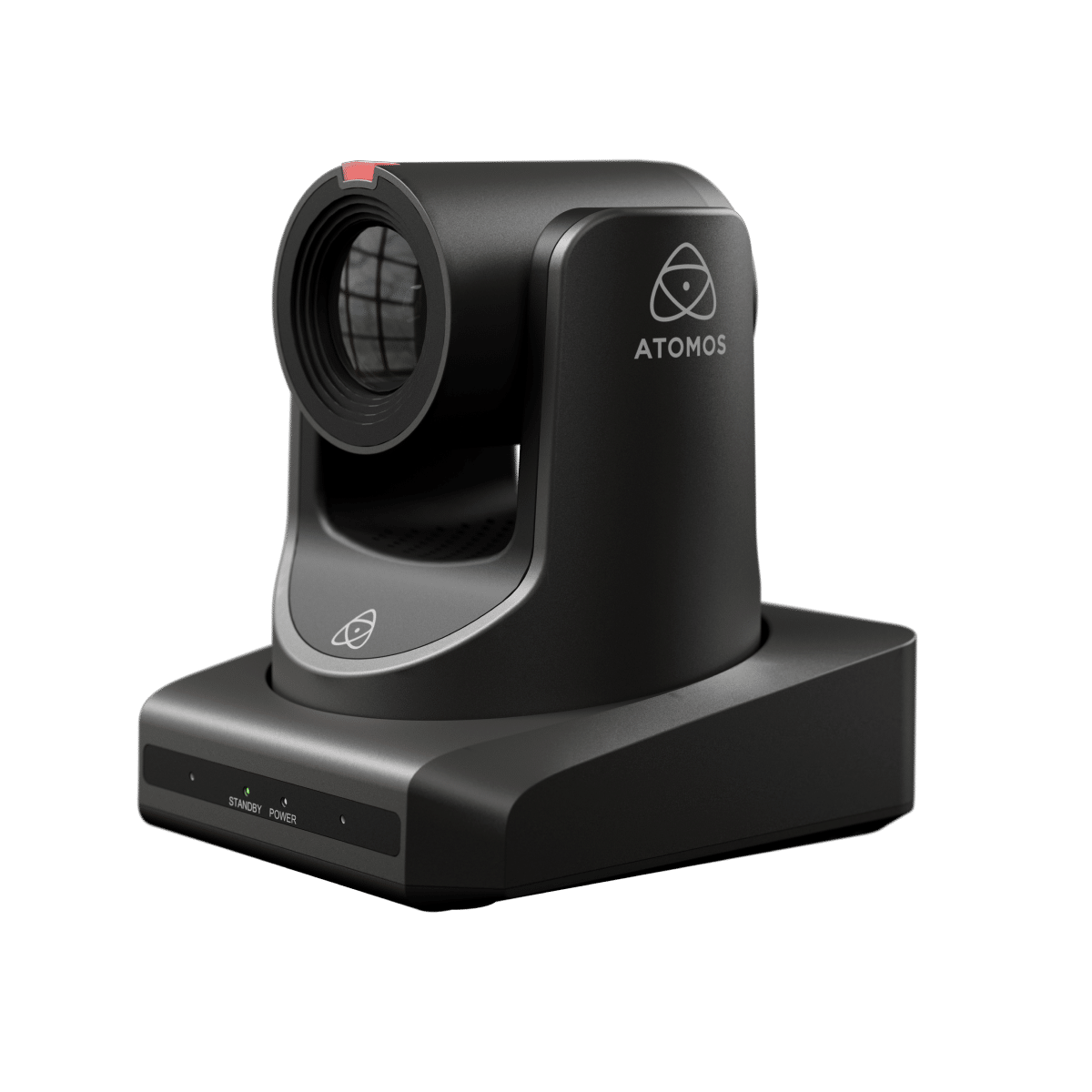

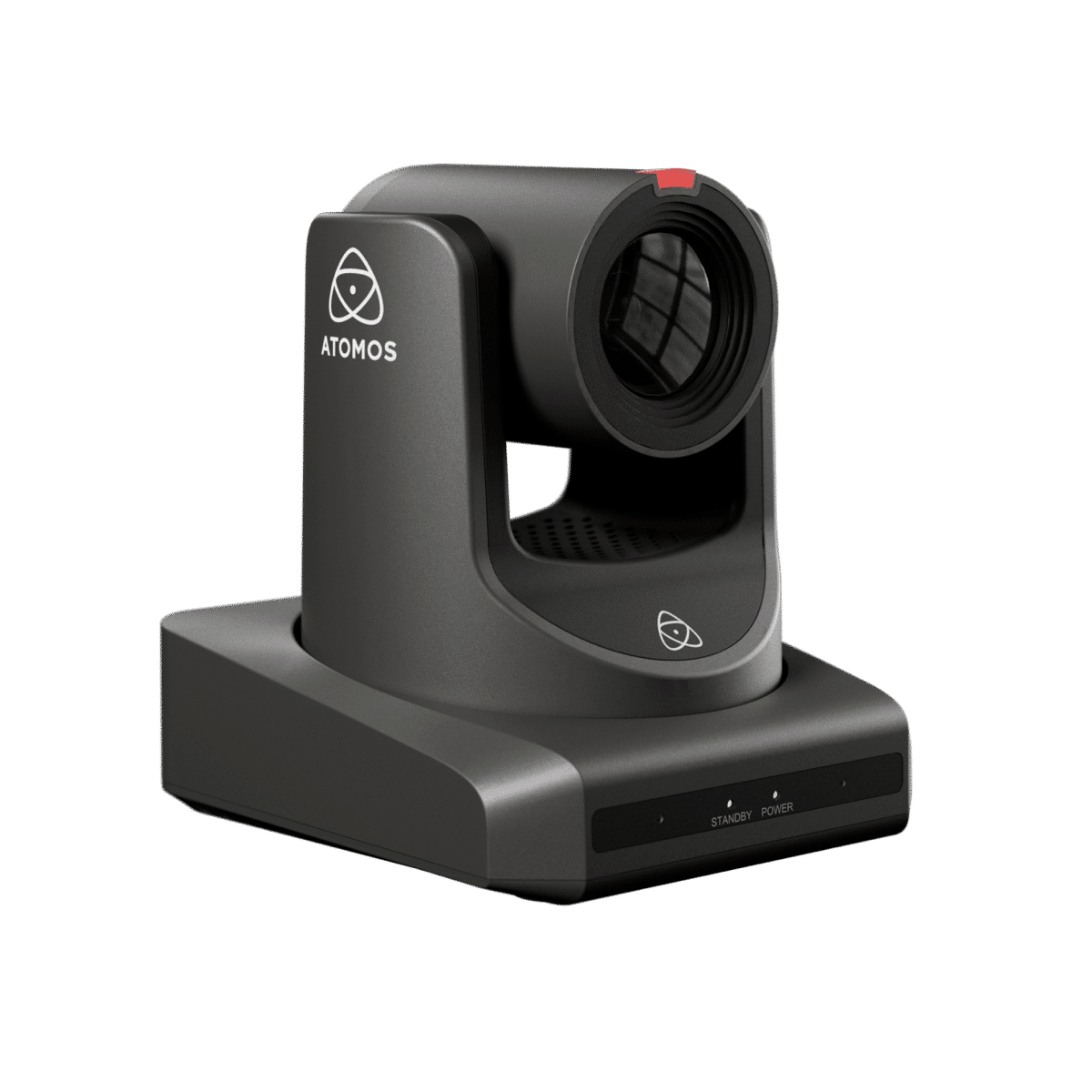

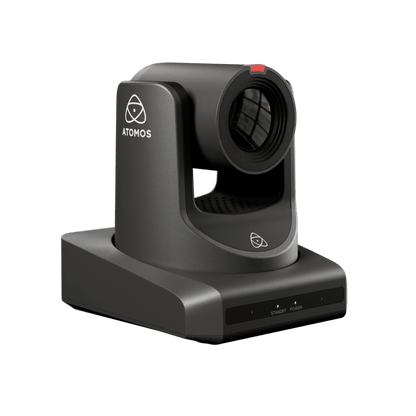

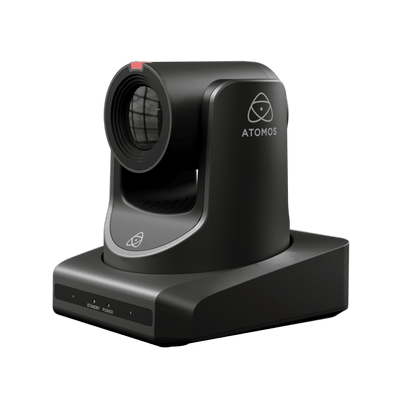

Atomos A-Eye 4K-12X PTZ Camera

Atomos A-Eye 4K-12X PTZ Camera

The Atomos A-Eye 4K-12X pairs a 1/2.5-inch 8.51MP CMOS sensor with a wider 12× optical zoom, making it particularly well suited to classrooms, meeting rooms and studios where the camera needs both a broad establishing view and 4K close-up capability.

HDMI output supports UHD 4K up to 60p, while 3G-SDI provides up to 1080p60 for professional video systems. NDI HX3 and a broad IP protocol set extend the camera into network production, streaming and AV-over-IP installations without limiting it to one connection standard.

PTZ movement covers ±170° pan and -30° to +90° tilt with up to 255 presets and 0.1° positioning accuracy, giving operators repeatable framing for lectures, worship, corporate rooms and compact studio setups.

Key Features

• 1/2.5-inch CMOS sensor with 8.51MP effective resolution
• 12× optical zoom plus 16× digital zoom
• 4.4–52.8mm lens with f/1.8–2.6 aperture range
• HDMI output up to UHD 4K60
• 3G-SDI output up to 1080p60
• NDI HX3 and broad IP streaming/control protocol support
• RS-485 and RS-232 serial control
• Integrated tally light
• Up to 255 PTZ presets

Specifications

• Brand: Atomos
• Sensor: 1/2.5-inch CMOS
• Effective pixels: 8.51MP
• Optical zoom: 12×
• Digital zoom: 16×
• Lens: 4.4–52.8mm, f/1.8–2.6
• HDMI: UHD 4K up to 60p
• 3G-SDI: up to 1080p60
• Network: 10/100 Ethernet
• IP protocols: NDI HX3, TCP/IP, HTTP, RTSP, RTMP, RTMPS, ONVIF, DHCP, SRT, Multicast
• Control: RS-485, RS-232 IN/OUT
• Audio: 3.5mm line input and output
• USB: USB-A
• Pan: ±170°
• Tilt: -30° to +90°
• Presets: up to 255
• Positioning accuracy: 0.1°
• Dimensions: approximately 146 × 169 × 168mm
• Weight: approximately 1.6kg
• Power: 12V DC or PoE+ 802.3at
• Maximum power: 18W

Materials & Construction

• ABS camera housing
• Integrated motorised pan, tilt and optical zoom assembly
• Professional HDMI, 3G-SDI, Ethernet and serial-control connections
• Integrated tally indicator for production use

What's Included

• 1 × Atomos A-Eye 4K-12X PTZ Camera
• 2m RS-232 serial cable
• 1.5m USB 3.0 Type-A to Type-A cable
• Lens cover
• Remote controller
• Accessory tray
• Wall-mount bracket
• Screw pack
• Power adapter with four plug options
• Quick Start Guide

Why Choose the Atomos A-Eye 4K-12X

• Wider 12× zoom range suits smaller rooms where the camera may sit closer to the subject
• HDMI, SDI and IP outputs allow the same camera to fit conventional AV and network production systems
• PoE+ can simplify fixed installations by carrying power and network connectivity to the camera position

Perfect For

• Classrooms and lecture capture
• Corporate meeting rooms
• Small studios and livestream spaces
• Worship and event installations where a wider PTZ field of view is useful

Compatibility

Network, control and streaming features depend on the surrounding AV system, software and network configuration. Confirm the required HDMI, SDI, NDI, PoE and control workflow before installation.
