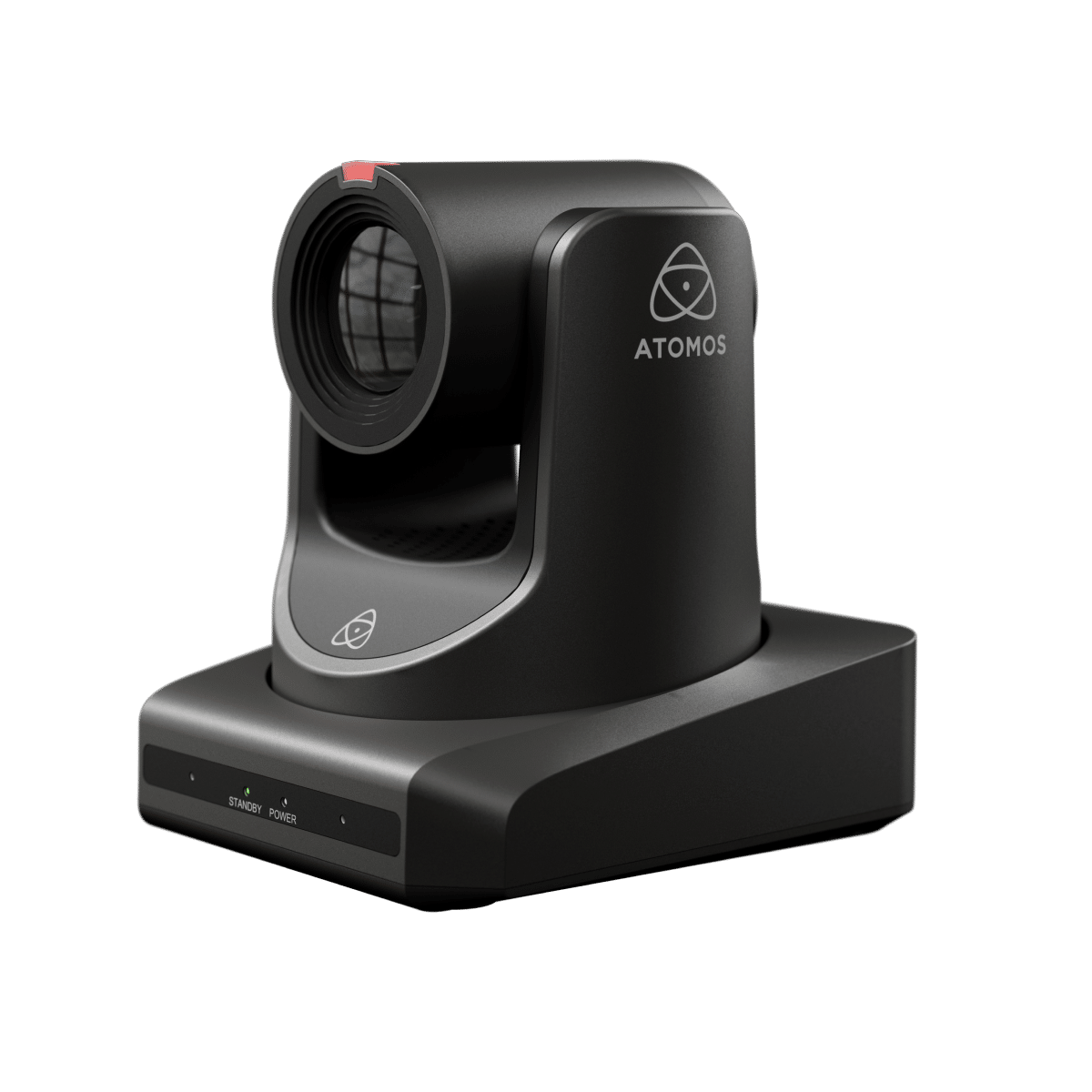

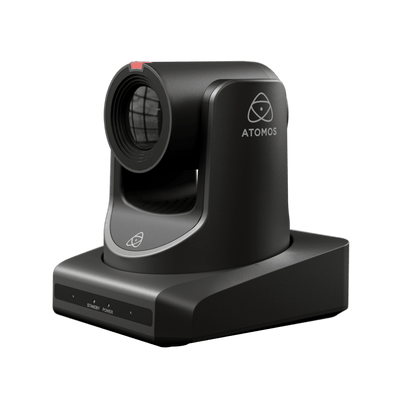

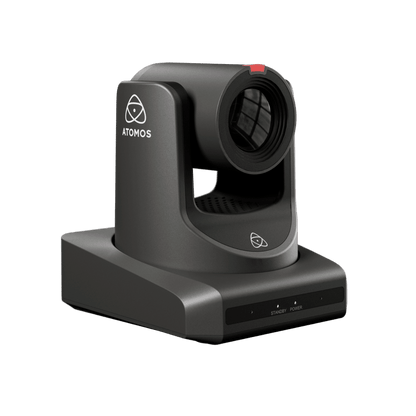

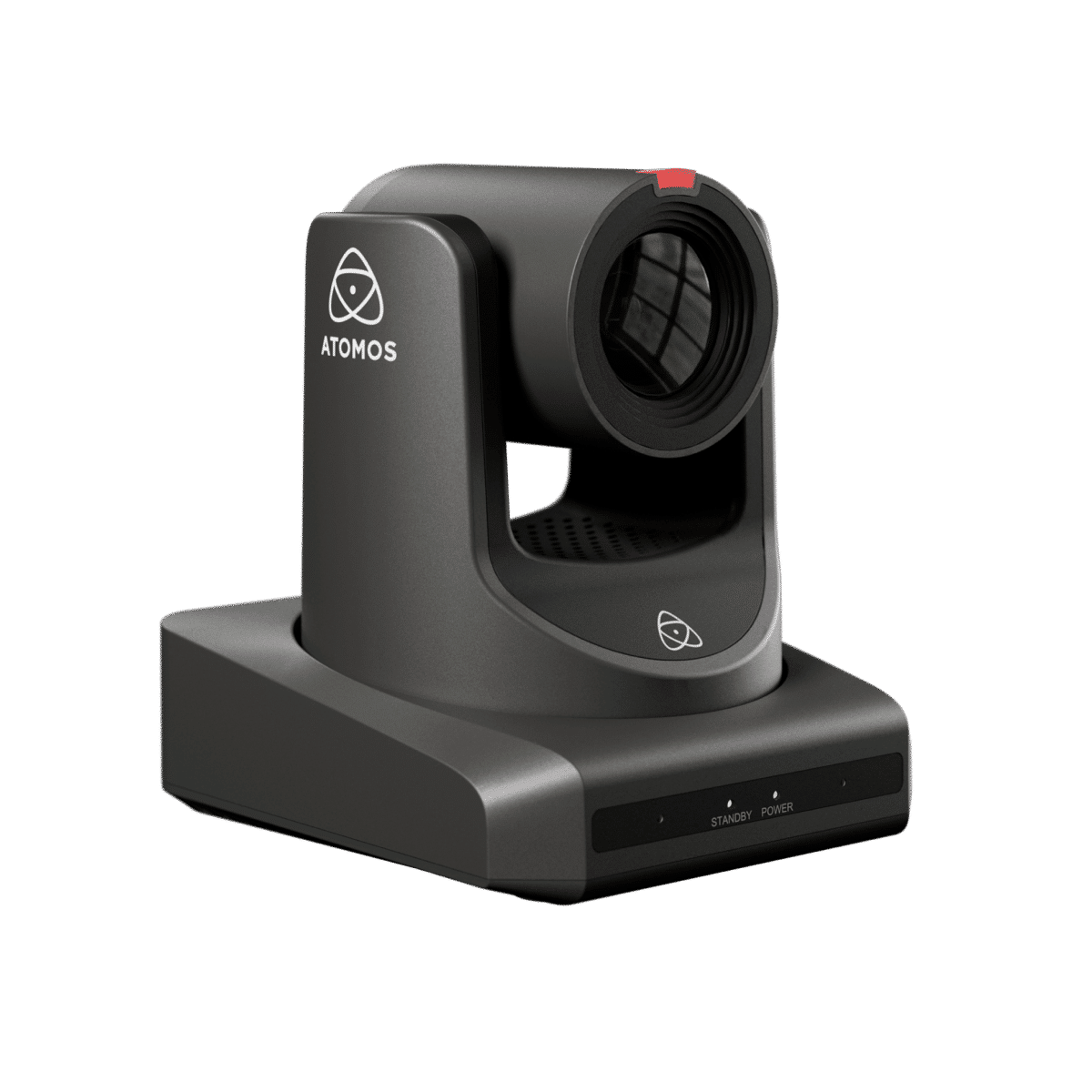

Atomos A-Eye 4K-20X PTZ Camera

Atomos A-Eye 4K-20X PTZ Camera

The Atomos A-Eye 4K-20X combines a 1/1.8-inch 8.42MP CMOS sensor with a 20× optical zoom and UHD 4K output up to 60p, giving fixed installations a long-range PTZ camera with HDMI, 3G-SDI and IP production connectivity.

The 6.25–125mm f/1.58–3.95 zoom covers broad room views through tight stage or presenter framing without physically repositioning the camera. NDI HX3, RTSP, RTMP/RTMPS, SRT, ONVIF and other IP protocols allow the camera to participate in networked production, while 12V DC or PoE+ power simplifies permanent installations.

Pan movement covers ±170 degrees and tilt runs from -30 to +90 degrees, with up to 255 preset positions and 0.1-degree preset accuracy. RS-232, RS-485 and network control support dedicated PTZ controllers and software-based operation.

Key Features

• 1/1.8-inch CMOS sensor with 8.42MP effective resolution
• 20× optical zoom plus 16× digital zoom
• UHD 4K output up to 60p over HDMI
• 3G-SDI output up to 1080p60
• NDI HX3 and IP streaming support
• AI-assisted subject tracking
• Up to 255 PTZ preset positions
• 12V DC or PoE+ power

Imaging Specifications

• Sensor: 1/1.8-inch CMOS
• Effective Pixels: 8.42MP
• Lens: 20× optical zoom, 6.25–125mm
• Maximum Aperture: f/1.58–3.95
• Digital Zoom: 16×
• Scanning: Progressive
• HDMI Output: Up to UHD 4K60
• 3G-SDI Output: Up to 1080p60

PTZ Movement

• Pan Range: ±170°
• Tilt Range: -30° to +90°
• Presets: Up to 255
• Preset Accuracy: 0.1°

Network & Connections

• Protocols: NDI HX3, TCP/IP, HTTP, RTSP, RTMP/RTMPS, ONVIF, DHCP, SRT and Multicast
• Network: 10/100 Ethernet
• Serial Control: RS-485 plus RS-232 IN/OUT
• Audio: 3.5mm line input and line output; embedded audio via supported outputs
• USB: USB Type-A
• SDI: 3G-SDI BNC
• HDMI: HDMI 1.3
• Tally: Integrated indicator

Physical & Power Specifications

• Dimensions: 146 × 169 × 168mm
• Weight: Approximately 1.6kg
• Body: ABS
• Power: 12V DC or PoE+ (802.3at)
• Maximum Power: 18W

What's Included

• A-Eye 4K-20X PTZ camera
• 2m RS-232 serial cable
• 1.5m USB 3.0 A-A cable
• Lens cover
• Remote controller
• Accessory tray
• Wall-mount rack
• Screw pack
• Power adaptor with four international plugs
• Quick Start Guide

Compatibility

Confirm the protocol, video format and PoE capability of the switcher, network and controller used with the camera. NDI and third-party PTZ control functions depend on the surrounding network and software configuration.

Perfect For

• Live events and performance spaces
• Corporate and education studios
• House-of-worship production
• Long-room PTZ installations requiring substantial optical reach
