Atomos A-Eye Control Remote Controller

Atomos A-Eye Control Remote Controller

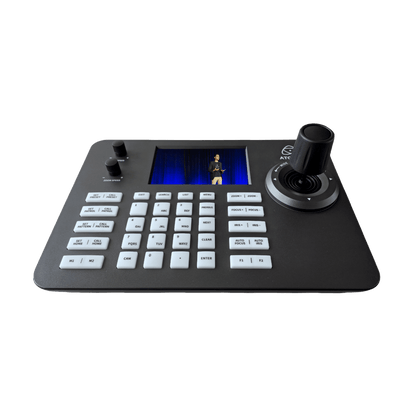

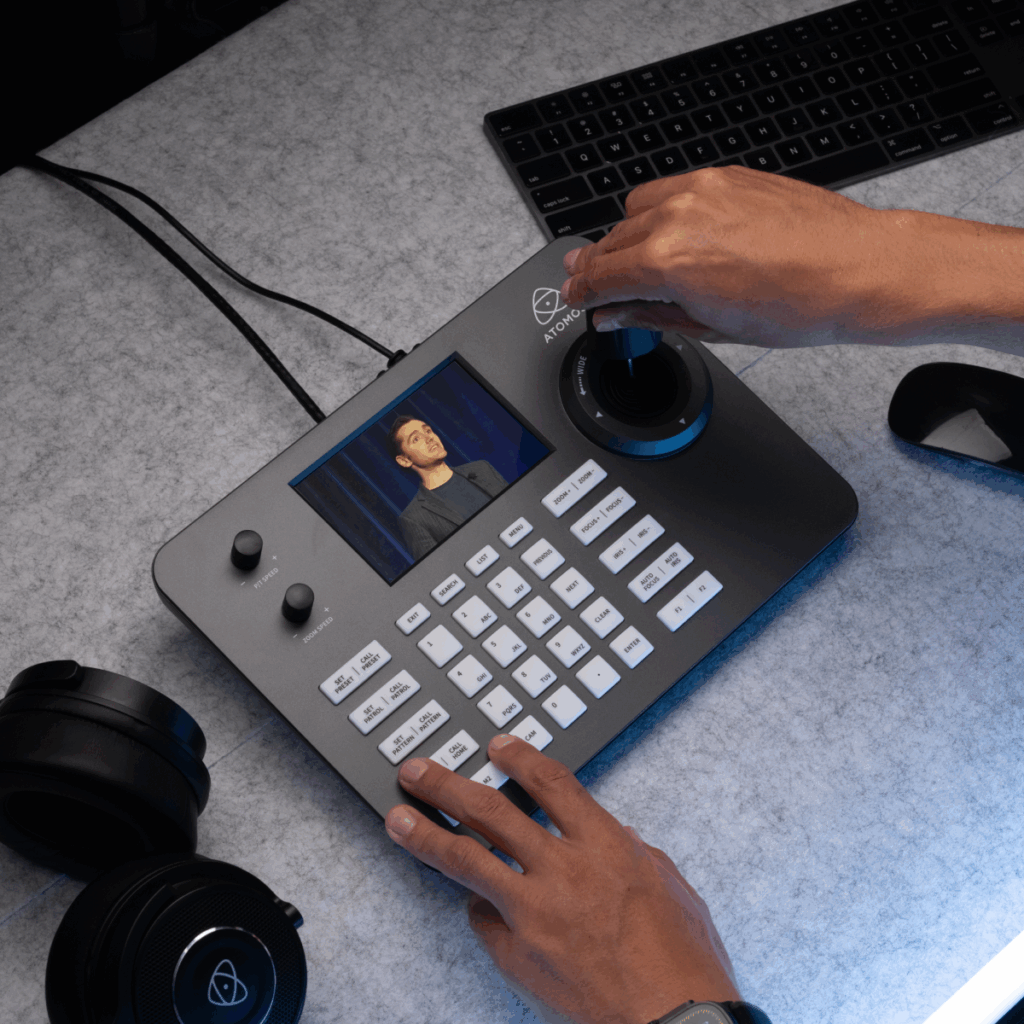

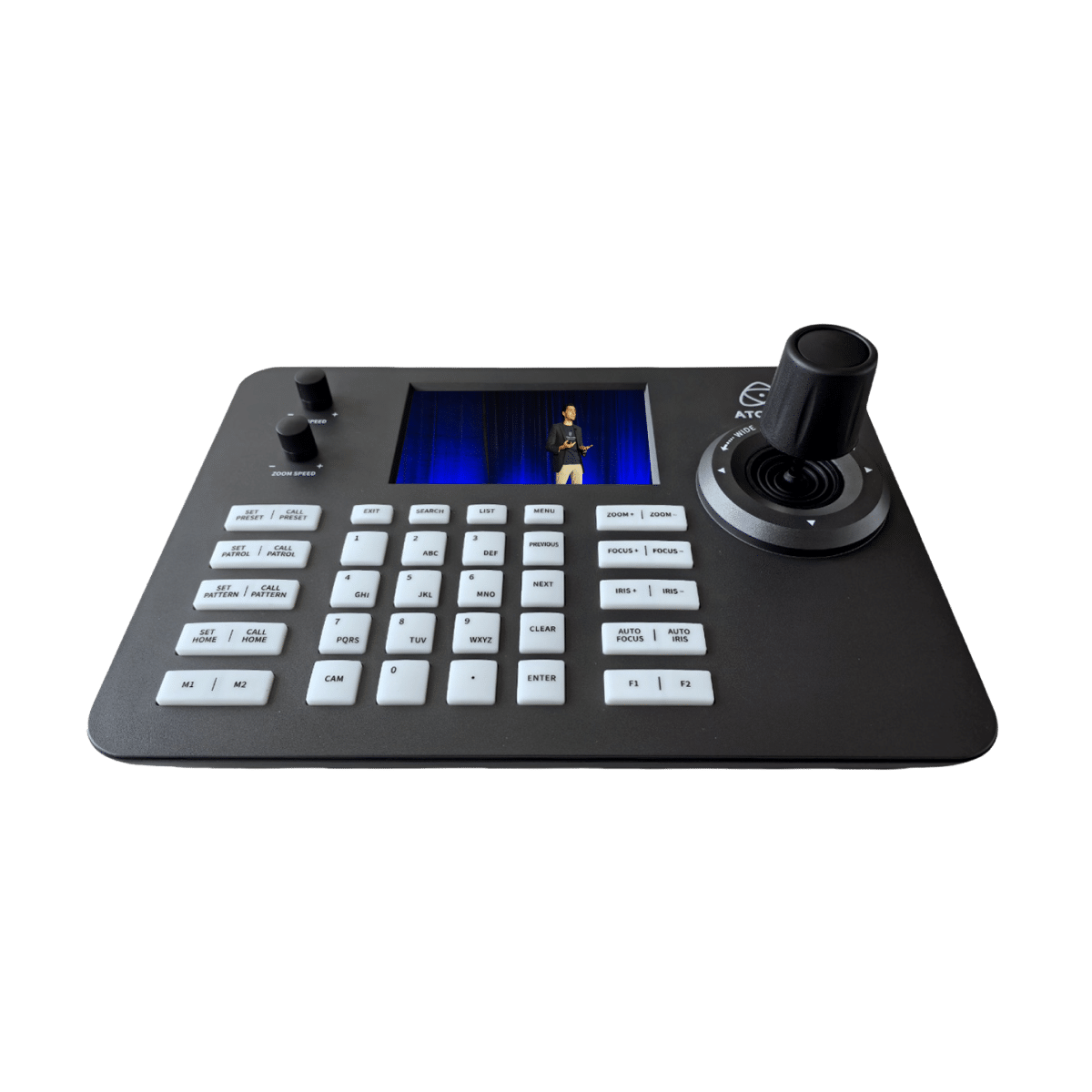

The Atomos A-Eye Control is a dedicated desktop controller for A-Eye PTZ cameras, combining a variable-speed 4D joystick, 5-inch LCD display and direct access to pan, tilt, zoom, focus, exposure and stored camera positions.

Rather than relying on software menus during a live production, the controller places core PTZ and image controls on a physical surface. It can recall presets and manage multiple A-Eye cameras from one operator position, while RS-232, RS-422 and network-based control make it suitable for installed AV systems.

The 900g polycarbonate-ABS unit can be powered from 12V DC or compatible PoE, and Atomos rates operating consumption at no more than 5W.

Key Features

• Dedicated control surface for Atomos A-Eye PTZ cameras
• 5-inch LCD screen
• Variable-speed 4D joystick
• Dedicated zoom and focus controls
• Exposure, white-balance and image-setting access
• Store and recall camera presets
• Customisable function buttons and shortcuts
• ONVIF support

Control & Connection Specifications

• Camera System: Atomos A-Eye PTZ series
• Serial Control: RS-232 and RS-422
• Network Control: Supported A-Eye IP/ONVIF workflows
• Display: 5-inch LCD
• Joystick: Variable-speed 4D control
• Adjustments: Pan, tilt, zoom, focus, exposure, white balance and preset recall

Physical & Power Specifications

• Dimensions: 340 × 268 × 140mm
• Weight: 900g
• Body: Polycarbonate ABS
• Input: DC 12V / 2A
• Operating Power: ≤5W
• Operating Temperature: -10°C to 55°C

What's Included

• A-Eye Control remote unit
• Power adaptor with four plug options
• Quick Start Guide

Compatibility

This controller is designed specifically around the A-Eye PTZ family. Confirm the exact camera firmware, connection method and required serial/network topology before commissioning a multi-camera installation.

Why Choose A-Eye Control

• Physical joystick operation is faster for live reframing than mouse-driven PTZ control
• Preset recall supports repeatable camera positions across recurring productions
• One control surface can centralise multiple A-Eye cameras

Perfect For

• Corporate and education studios
• Houses of worship
• Live-event control rooms
• Fixed multicamera A-Eye installations

Shipping Information

Please allow up to 4 to 12 BUSINESS days for delivery. For accurate shipping times, please check our shipping policy here.

Refunds & Returns

Returns are accepted within 30 days in line with our returns policy. Please check our returns policy before purchasing for full eligibility requirements.

Need help planning an A-Eye system?

Contact CameraHUB before ordering if you need help confirming controller connectivity or the number of cameras in your PTZ installation.
