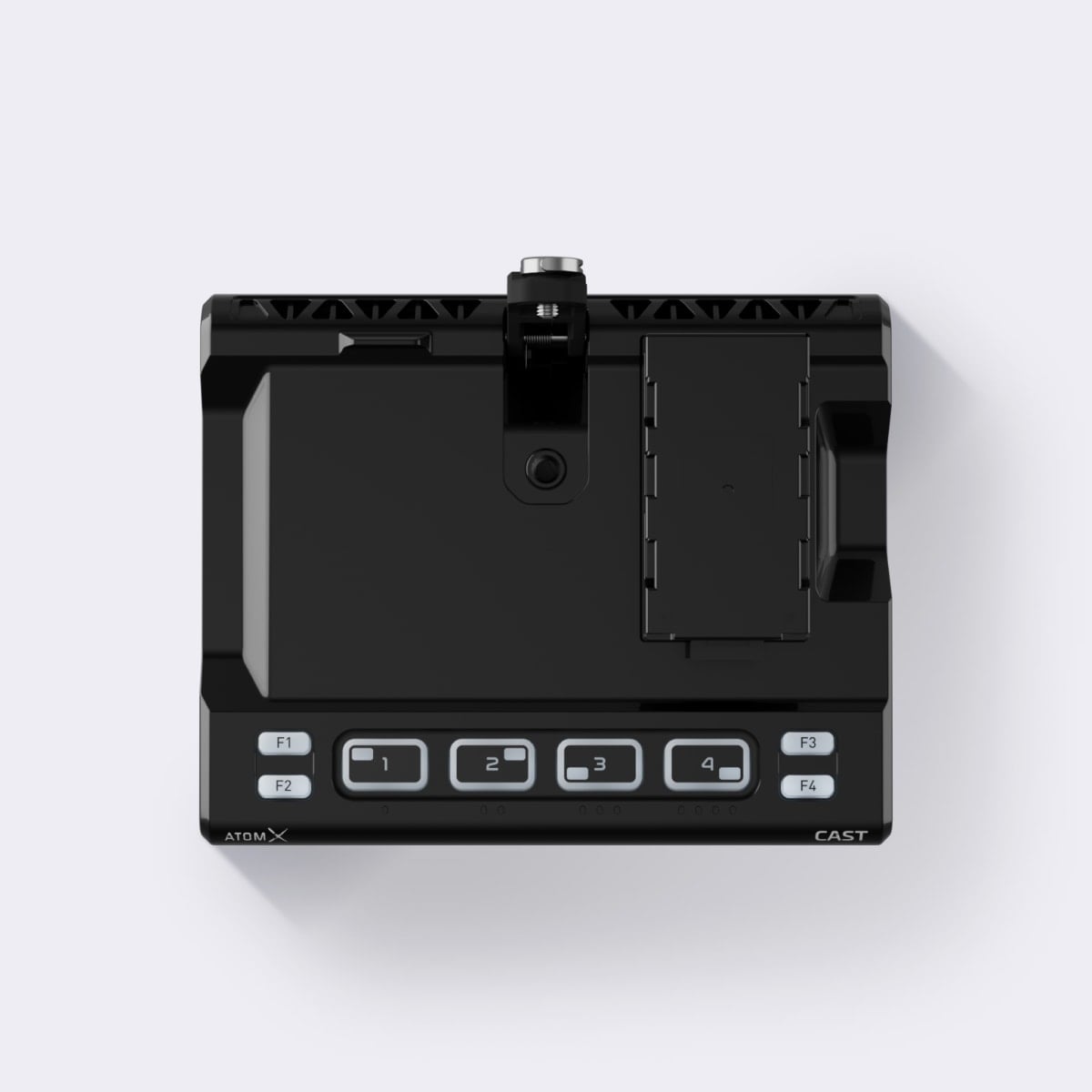

Atomos AtomX CAST HDMI Multicamera Switcher Module

AtomX CAST turns a compatible Atomos Ninja monitor-recorder into a compact four-input HDMI production switcher, adding hardware input buttons, picture-in-picture, graphics overlays, multiview and USB UVC streaming without requiring a separate full-size switcher console.

CAST accepts four HDMI 1.4b inputs up to 1080p60, then uses the attached Ninja for program, preview and multiview monitoring. A dedicated HDMI program output is also available on the CAST module, while USB-C UVC output allows the switched program to feed compatible streaming software on a computer.

When paired with a supported Ninja, the system can record the switched program in Apple ProRes or Avid DNxHD. Eight PNG graphics can be stored for overlays, and picture-in-picture can place any input over another in four positions and two sizes.

Key Features

• 4 × HDMI 1.4b inputs
• Up to 1080p60 input and switching
• 4 dedicated input buttons and 4 function buttons
• Quad-input multiview through the attached Ninja
• Picture-in-picture with four positions and two sizes
• PNG graphics overlays with alpha transparency
• USB-C UVC web-streaming output
• Switched program recording through compatible Ninja models

Video & Audio Specifications

• HDMI Inputs: 4 × HDMI 1.4b
• Maximum Progressive Format: 1920 × 1080 up to 60p
• HDMI Program Output: 1 × HDMI 1.4b on CAST
• Ninja HDMI Output: Program, preview or multiview
• Bit Depth: 8/10-bit input; 10-bit output
• Audio: 24-bit / 48kHz PCM
• HDMI Audio: 2-channel, input dependent
• Streaming: USB UVC via USB-C

Recording & Media

• Apple ProRes: HQ, 422 and LT for program recording
• Avid DNxHD: 220x, 220, 145 and 36 for program recording
• Master Caddy II: Supported
• Master Caddy III: Supported
• SSDmini: Supported with AtomX SSDmini Handle
• File System: exFAT through the Ninja

Physical & Power Specifications

• Dimensions: 129 × 49 × 160mm without Ninja attached
• Weight: 485g without Ninja
• Body: ABS polycarbonate
• Mounting: Bottom 1/4-inch-20 or 3/8-inch with anti-rotation points
• Input Voltage: 6.2–16.8V
• DC Input: Locking 5.5mm OD / 2.1mm ID jack

What's Included

• AtomX CAST module
• USB-C cable
• AtomX SSDmini handle adaptor

Compatibility

Requires a compatible Ninja host: Ninja, Ninja Ultra, Ninja V or Ninja V+. CAST connects through the AtomXpansion interface and does not provide module pass-through. It is an HD switcher; do not assume 4K switching because the HDMI inputs are limited to supported 1080p formats.

Perfect For

• Four-camera livestreams
• Corporate and education productions
• Portable event switching
• Gaming and creator multicamera setups
