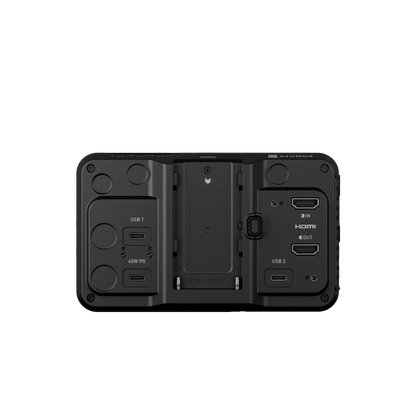

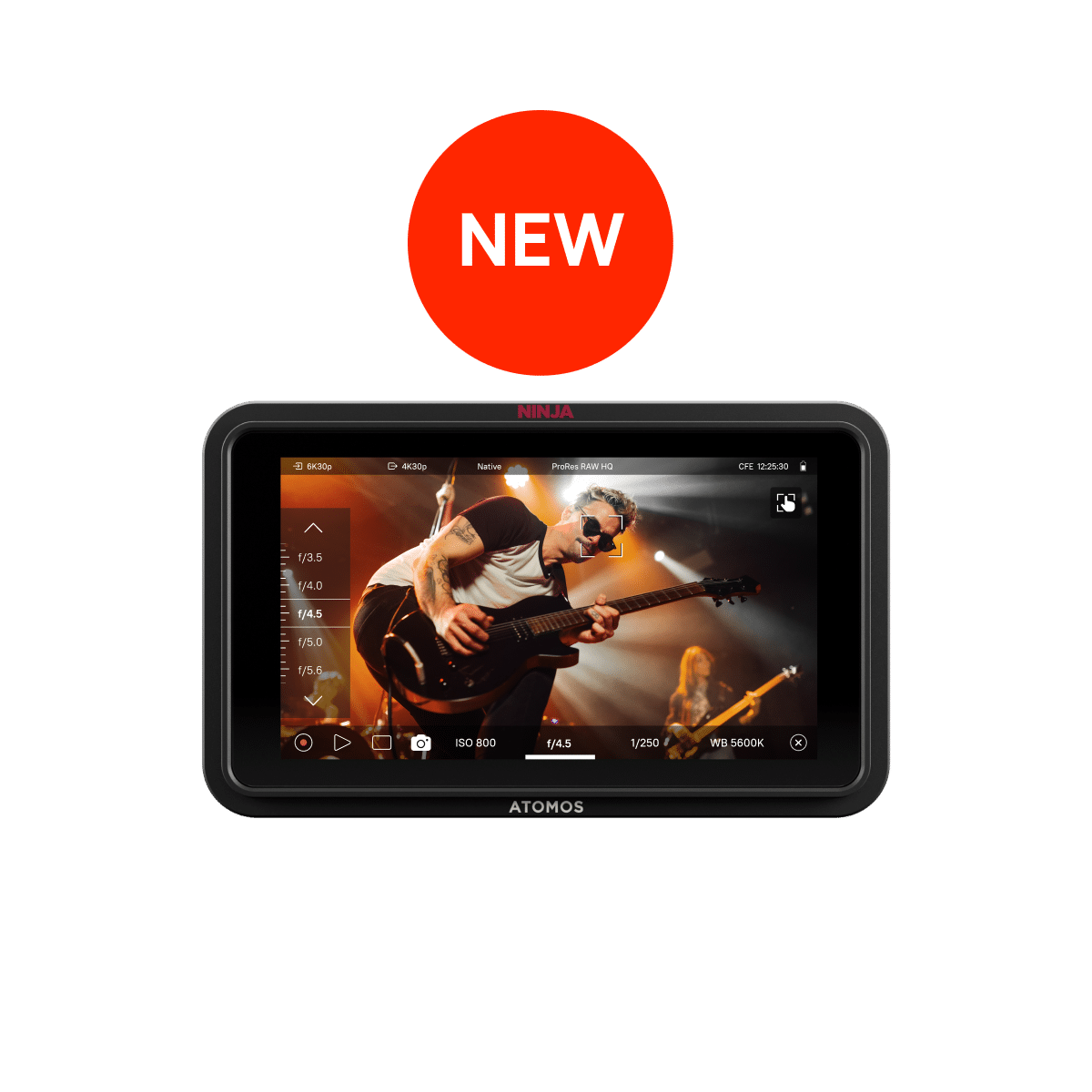

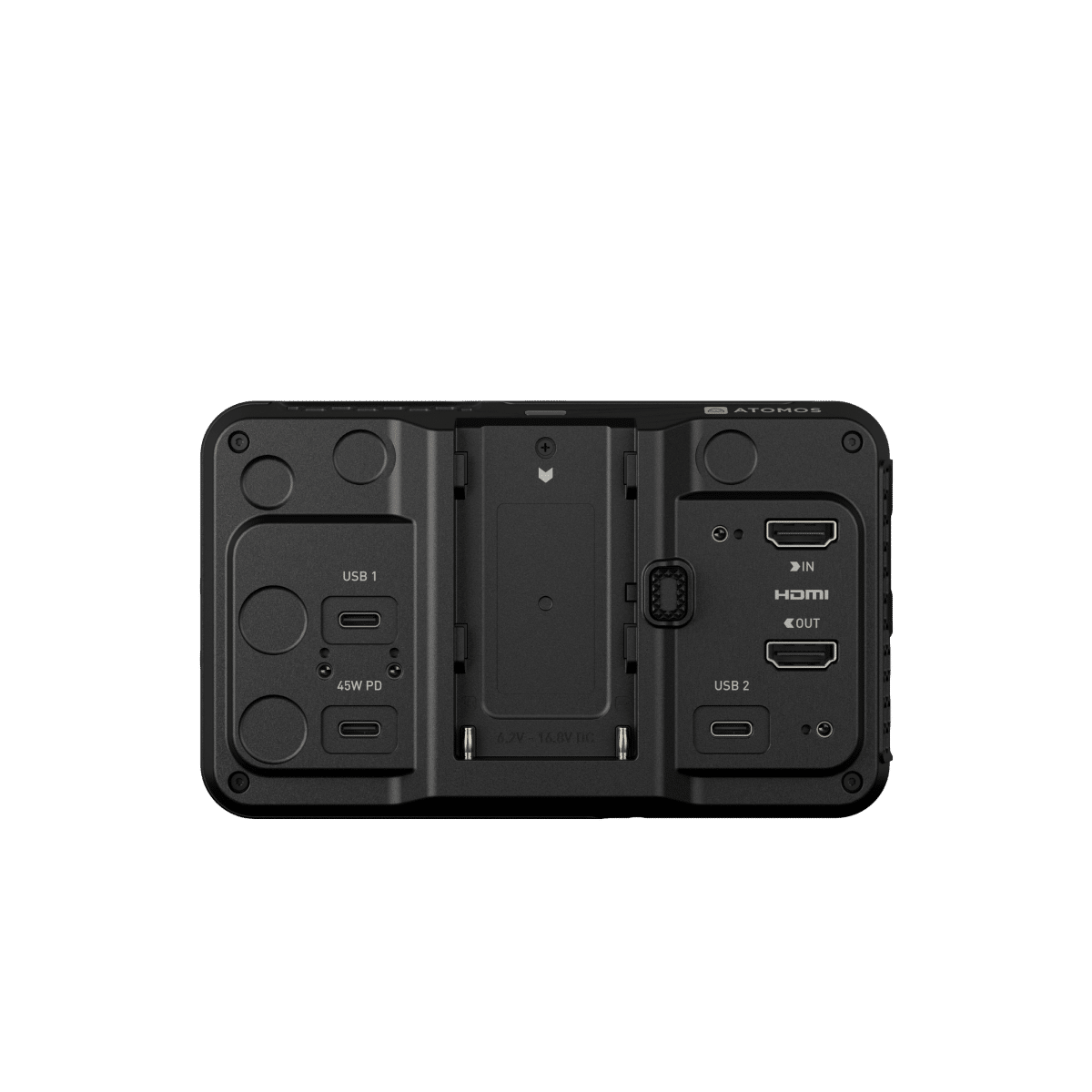

Atomos Ninja RAW

Atomos Ninja RAW

The Atomos Ninja RAW is a 5.2-inch 1500-nit HDMI monitor-recorder built for compact RAW and high-frame-rate production, combining professional exposure tools, camera control and recording to CFexpress Type B or approved USB media.

Its 1920 × 1080 SuperAtom display is designed for on-camera monitoring in bright working conditions, while the aluminium-and-ABS chassis keeps the unit at 400g. Ninja RAW records Apple ProRes RAW up to 6Kp30 from supported cameras and also supports ProRes and H.265 recording for conventional production and proxy workflows.

USB-C camera control can provide start/stop, ISO, shutter, aperture, white balance and touch-to-focus on supported cameras. Power can come from an NP-F battery or USB-C PD, and the locking cable adaptors supplied with the recorder help secure HDMI and USB-C connections on a rig.

Key Features

• 5.2-inch 1920 × 1080 touchscreen
• 1500-nit brightness
• Apple ProRes RAW recording up to 6Kp30 on supported cameras
• Apple ProRes LT, 422 and 422 HQ recording
• H.265 recording in supported 8-bit and 10-bit modes
• CFexpress Type B and approved USB 3.0 recording media support
• USB-C camera control on supported camera models
• Waveform, RGB parade, vectorscope, EL Zone, false colour, zebra and focus peaking

Display & Physical Specifications

• Display: 5.2-inch edge-lit touchscreen
• Resolution: 1920 × 1080
• Brightness: 1500 nits
• Colour Gamut: Rec.709
• Dimensions: 151 × 92 × 36mm
• Weight: 400g
• Construction: Aluminium with ABS plastic
• Cooling: Actively controlled fan and heat sink
• Mounting: Anti-rotation 1/4-inch / 3/8-inch mounting points top and bottom

Recording & Video

• RAW Recording: Up to 6Kp30 on supported cameras
• 4K DCI/UHD: Up to 60p
• 1080p: Up to 120p
• File System: exFAT
• ProRes RAW: ProRes RAW and ProRes RAW HQ
• ProRes: LT, 422 and 422 HQ
• H.265: LQ, MQ, HQ and XQ profiles in supported 8/10-bit modes

Power & Connectivity

• Input Voltage: 6.2–16.8V DC
• Operating Power: Up to 30W
• Continuous Power: NP-F battery or USB-C PD
• USB-C PD Input: Requires a 65W-capable power supply
• USB-C PD Output: Up to 13W
• Audio: 3.5mm two-channel input and headphone output

What's Included

• Atomos Ninja RAW monitor-recorder
• USB-C locking cable adaptor
• HDMI locking cable adaptor
• 45cm USB-C locking cable
• Quick Start Guide

Compatibility

RAW resolution and frame rate depend on the connected camera and its supported HDMI RAW output. Camera-control functions are also model-specific. Confirm the exact camera, recording format and media compatibility before ordering.

Perfect For

• Compact cinema and mirrorless RAW workflows
• High-frame-rate external recording
• On-camera HDR/log monitoring
• Crews needing recording and camera-control tools in one compact unit
