Atomos Ninja TX

Atomos Ninja TX

A 5.2-inch 1500-nit HDMI/12G-SDI monitor-recorder built for high-resolution RAW capture, CFexpress or USB recording and connected camera-to-cloud production.

Ninja TX combines Atomos monitoring tools with professional recording and I/O in a compact 400g body. It can record up to 6Kp60 or 8Kp30 RAW from supported cameras, accepts both HDMI 2.0 and 12G-SDI, converts between HDMI and SDI, and records to certified CFexpress Type B or USB 3.0 media. Wi-Fi 6E, Bluetooth and AirGlu support make it particularly useful when a camera rig needs local recording and connected delivery from the same device.

Key Features

• 5.2-inch 1920 × 1080 touchscreen with 1500-nit brightness
• HDMI 2.0 and 12G-SDI input/output with HDMI-to-SDI and SDI-to-HDMI conversion
• RAW recording up to 6Kp60 / 8Kp30 on supported cameras
• Apple ProRes RAW, Apple ProRes, Avid DNx and H.265 recording workflows
• Certified CFexpress Type B and USB 3.0 recording media
• Wi-Fi 6E, Bluetooth, AirGlu and direct camera-to-cloud workflows

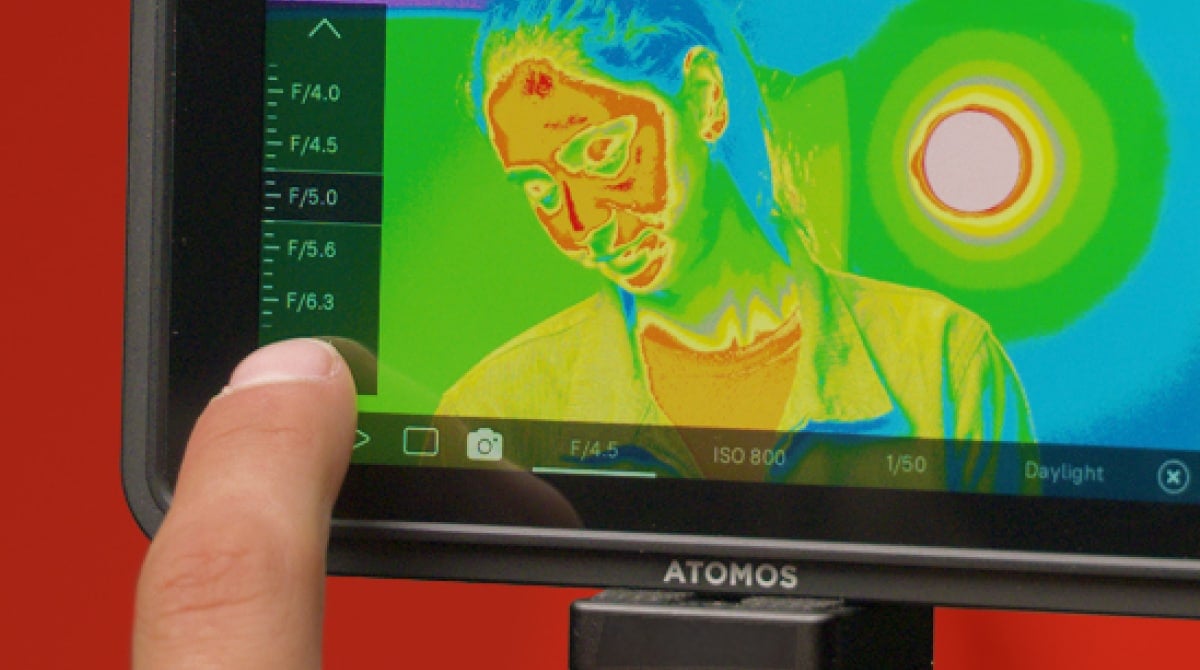

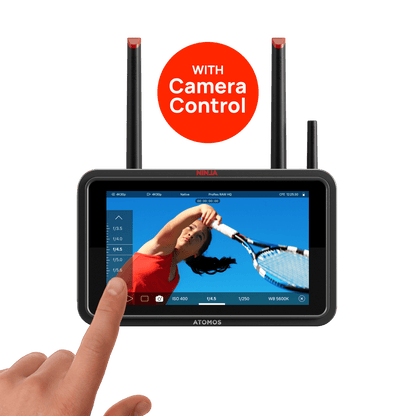

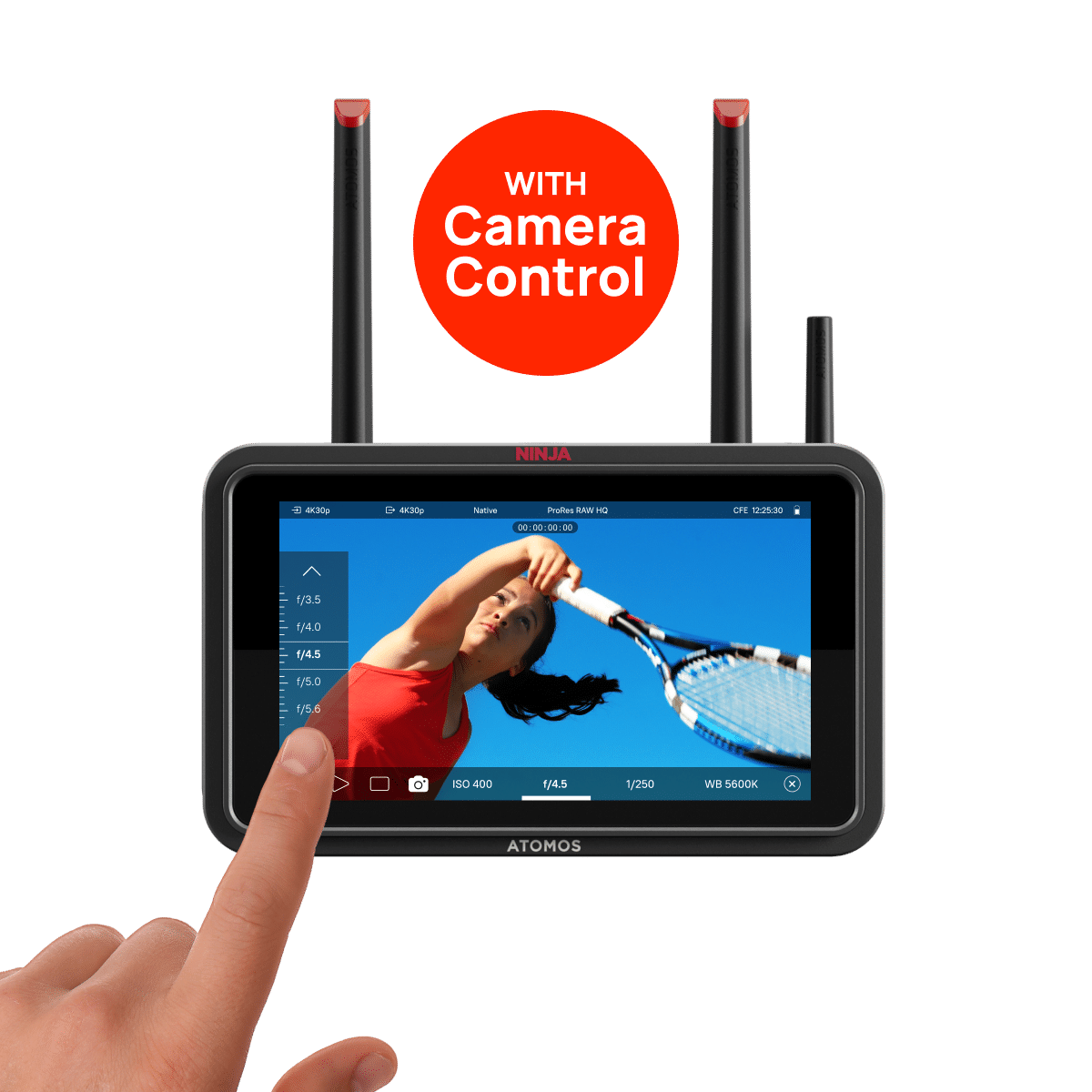

• USB-C camera control including supported record, ISO, shutter, aperture, white balance and touch-to-focus functions

Display & Monitoring

• Display: 5.2-inch edge-lit touchscreen
• Resolution: 1920 × 1080
• Brightness: 1500 nits
• Aspect Ratio: 16:9
• Colour Gamut: Rec.709
• Monitoring Tools: waveform, histogram, vectorscope, RGB parade, false colour/EL Zone, zebra, focus peaking, zoom, frame guides, grids and anamorphic desqueeze

Video, Audio & Connectivity

• HDMI: HDMI 2.0; up to 4K60p video workflows
• SDI: 12G-SDI; up to 4K60p video workflows
• Audio: up to 8-channel 24-bit over HDMI and 12-channel 24-bit over SDI
• Analogue Audio: 3.5mm 2-channel input / headphone connection
• USB: 2 × USB-C 3.0
• Wireless: Wi-Fi 6E and Bluetooth
• Timecode: embedded HDMI/SDI plus wireless AirGlu RF server/client and AirGlu Bluetooth server

Physical & Power Specifications

• Dimensions: 151 × 92 × 36mm
• Weight: 400g
• Construction: aluminium with ABS plastic
• Cooling: actively controlled fan and heat sink
• Mounting: anti-rotation 1/4-inch / 3/8-inch mounting points top and bottom
• Input Voltage: 6.2–16.8V DC
• Operating Power: up to 30W
• Continuous Power: NP-F battery or USB-C PD; D-Tap support up to 30W
• Operating Temperature: up to 40°C

What's Included

• Atomos Ninja TX monitor-recorder
• USB-C locking cable adapter
• HDMI locking cable adapter
• Wi-Fi antenna with colour antenna tips
• AirGlu antenna and antenna caps
• 45cm USB-C locking cable
• Quick Start Guide

Perfect For

• Mirrorless and cinema-camera RAW recording
• SDI and HDMI production rigs
• Camera-to-cloud and collaborative workflows
• On-camera HDR monitoring and exposure/focus analysis

Compatibility Note

Maximum RAW resolution, camera control and codec availability depend on the connected camera, firmware and licensed workflow. Confirm your exact camera output and supported Atomos mode before purchasing.
