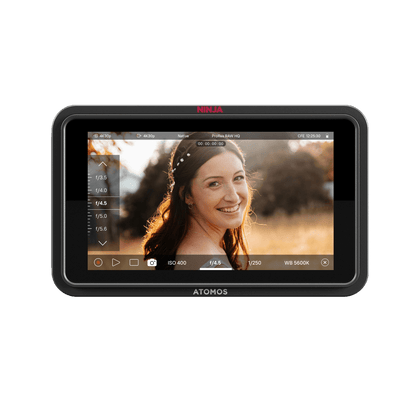

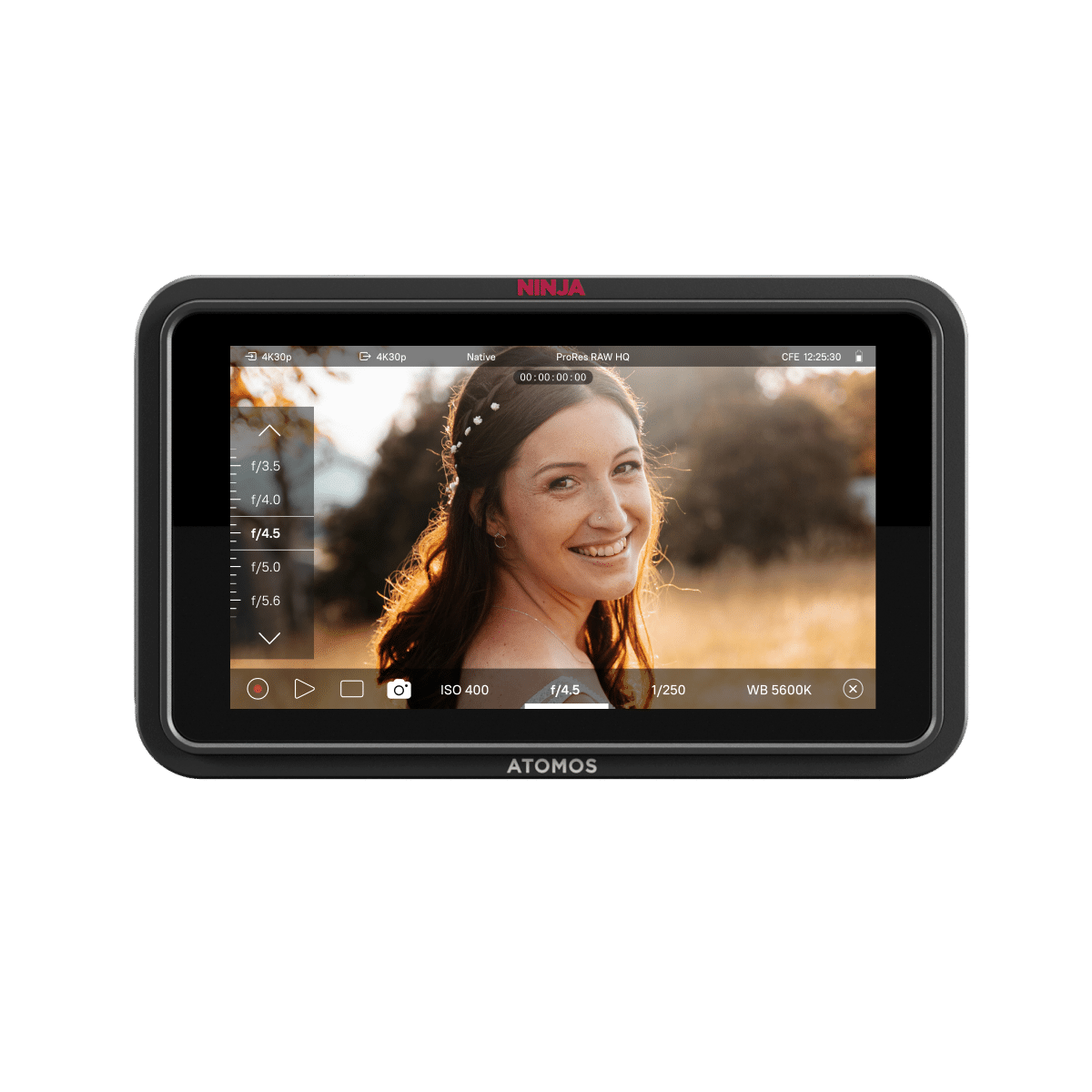

Atomos Ninja TX GO

Atomos Ninja TX GO

Ninja TX GO combines a 5.2-inch 1500-nit monitor-recorder with Wi-Fi 6E connectivity, camera-to-cloud delivery and USB-C camera control in a 400g body designed for modern HDMI production rigs.

The 1920 × 1080 display supports Atomos monitoring tools for focus, exposure and framing, while the recorder works with CFexpress Type B and approved USB 3.0 media. Network features support direct progressive uploads to ATOMOSphere and supported third-party cloud services, reducing the need to wait for cards to reach an edit station before media can begin moving.

Power is available through NP-F batteries or USB-C PD. The chassis includes anti-rotation 1/4-inch / 3/8-inch mounting points at both top and bottom and uses an actively controlled fan and heat sink for sustained operation.

Key Features

• 5.2-inch 1920 × 1080 touchscreen
• 1500-nit brightness
• Wi-Fi 6E connectivity
• CFexpress Type B and approved USB 3.0 recording media support

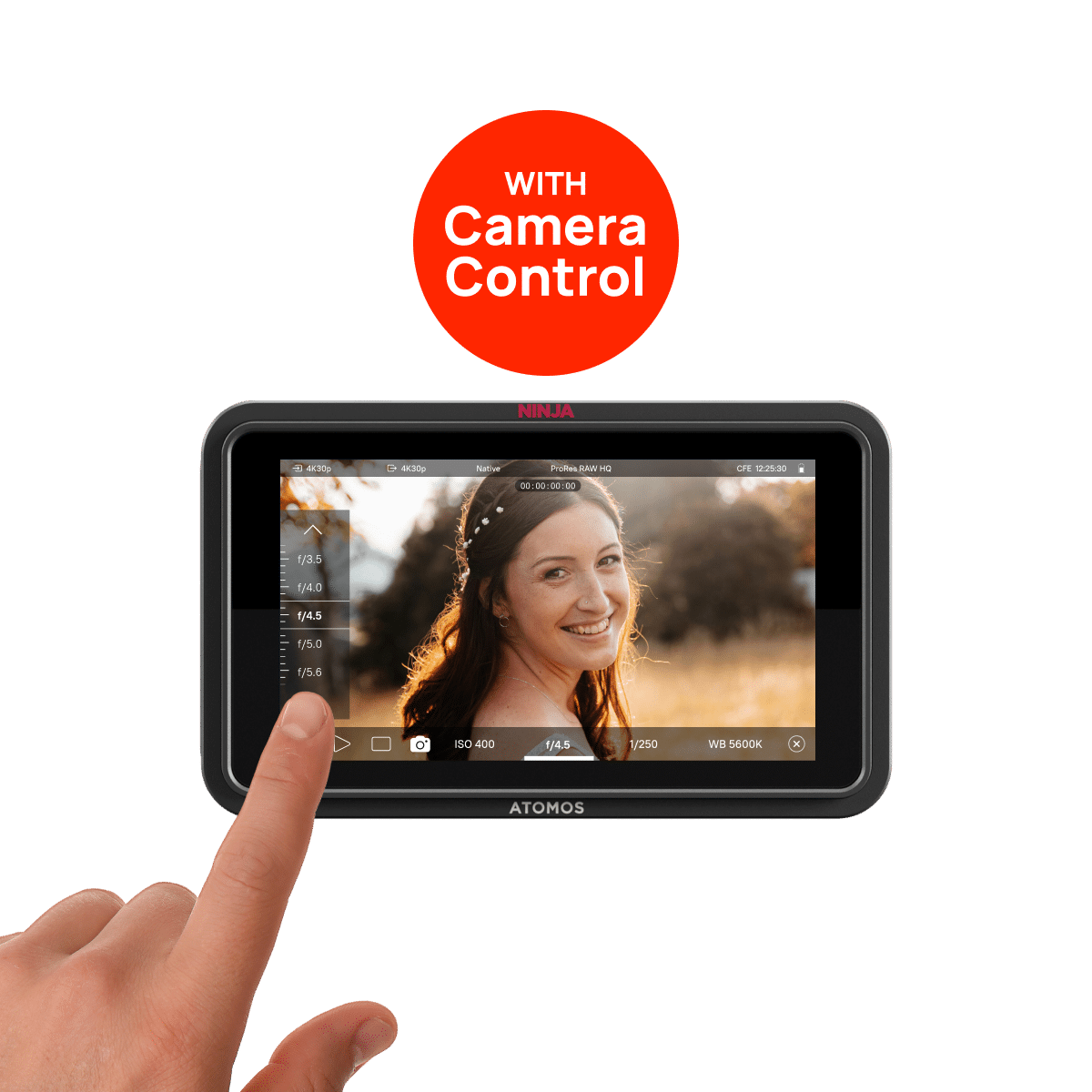

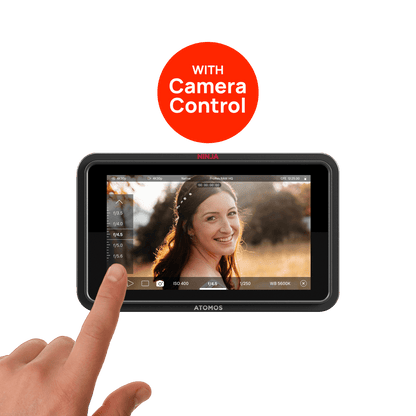

• USB-C camera control on supported cameras
• Direct progressive camera-to-cloud upload support
• Locking HDMI and USB-C cable adaptor system

Display & Physical Specifications

• Display: 5.2-inch edge-lit touchscreen
• Resolution: 1920 × 1080
• Brightness: 1500 nits
• Colour Gamut: Rec.709
• Dimensions: 151 × 92 × 36mm
• Weight: 400g
• Construction: Aluminium with ABS plastic
• Cooling: Actively controlled fan and heat sink
• Mounting: Anti-rotation 1/4-inch / 3/8-inch mounting points top and bottom

Power & Control

• Input Voltage: 6.2–16.8V DC
• Operating Power: Up to 30W
• Continuous Power: NP-F battery or USB-C PD
• USB-C PD Input: Requires a 65W-capable power supply
• USB-C PD Output: Up to 13W
• Camera Control: Start/stop, ISO, shutter, aperture, white balance and touch-to-focus on supported cameras

Connected Workflow

• ATOMOSphere: Direct progressive upload supported
• Adobe Frame.io: Direct progressive upload supported with separate service subscription
• Dropbox: Direct progressive upload supported with separate service subscription

What's Included

• Ninja TX GO monitor-recorder
• USB-C locking cable adaptor
• HDMI locking cable adaptor
• 2 × Wi-Fi antennas
• 5 × coloured antenna tips
• 2 × antenna caps
• 45cm USB-C locking cable
• Quick Start Guide

Compatibility

Camera-control functions, RAW capability and recording formats vary by connected camera. Confirm current Atomos camera compatibility and approved recording media for your intended resolution and frame rate.

Perfect For

• Mirrorless and cinema camera rigs
• Camera-to-cloud production
• On-camera monitoring and external recording
• Teams moving media to post-production while shooting continues

Shipping Information

Please allow up to 4 to 12 BUSINESS days for delivery. For accurate shipping times, please check our shipping policy here.

Refunds & Returns

Returns are accepted within 30 days in line with our returns policy. Please check our returns policy before purchasing for full eligibility requirements.

Need help confirming compatibility?

Contact CameraHUB before ordering if you need help matching Ninja TX GO to your camera, media or connected workflow.
