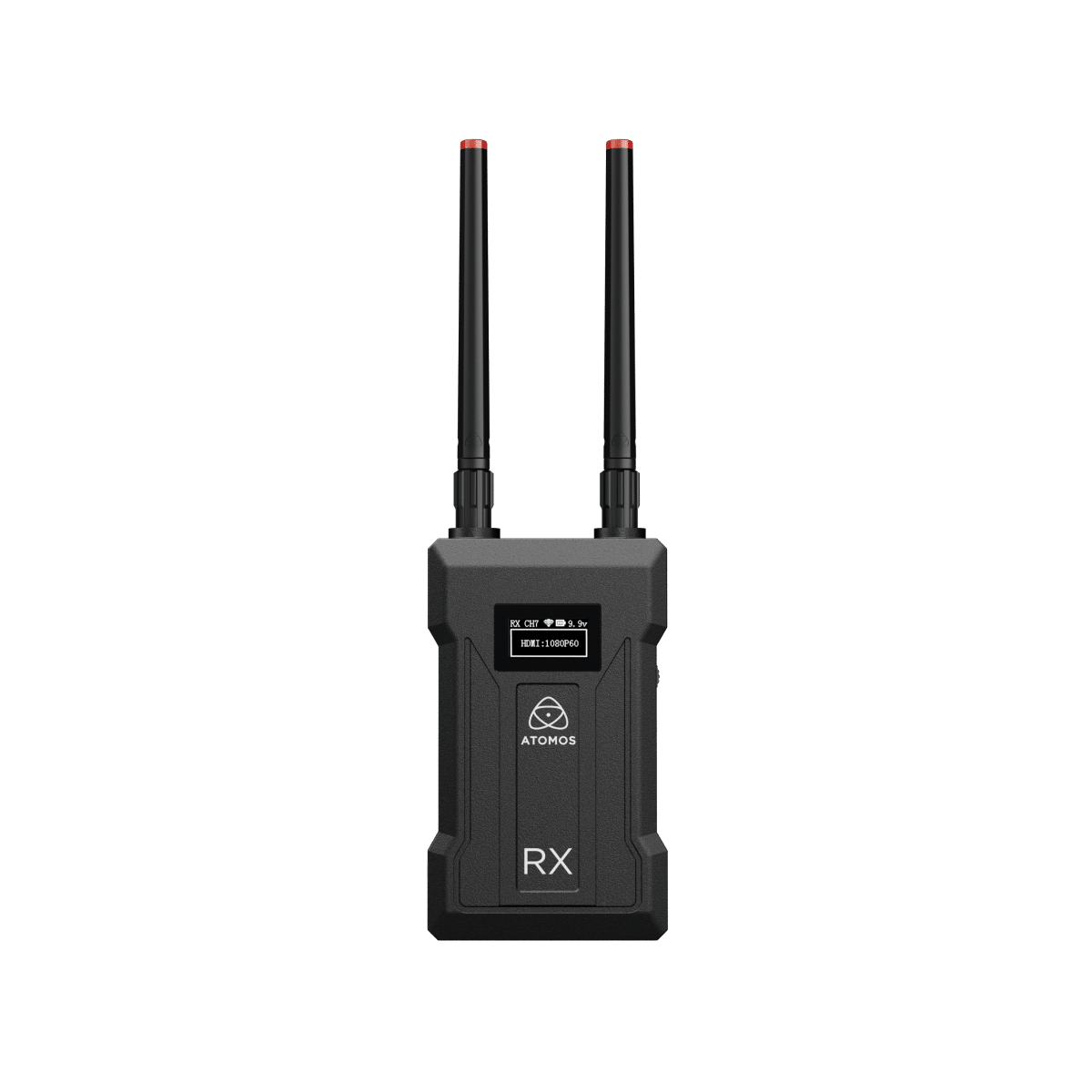

Atomos RX 4K/HD Wireless Video Monitoring Receiver

Atomos RX 4K/HD Wireless Video Monitoring Receiver

Atomos RX gives a director, client monitor or production station one compact receiving point for compatible Atomos TX wireless video, with dual HDMI outputs plus 3G-SDI so the same camera feed can reach multiple downstream devices.

The receiver supports HDMI output up to 4K30 and 3G-SDI output up to 1080p60. Nine selectable 5GHz channels and approximately 60ms system latency help it fit practical on-set monitoring, while Atomos rates the TX-RX system for up to 300m line of sight under suitable RF conditions.

At 231g, the aluminium receiver can mount through a bottom 1/4-inch-20 thread and can be powered from an NP-F battery, 9–16V DC or supported USB-C power.

Key Features

• Wireless receiver for compatible Atomos TX systems
• Two HDMI outputs
• One 3G-SDI output
• HDMI output up to 4K30
• 3G-SDI output up to 1080p60
• Up to 300m / 985ft rated line-of-sight range
• Approximately 60ms system latency
• Nine selectable 5GHz channels
• NP-F battery compatibility

Specifications

• Brand: Atomos
• Wireless band: 5GHz
• Channels: 9 (CH0–CH08)
• Transmission distance: up to 300m line of sight
• Latency: approximately 60ms
• Video outputs: 2 × HDMI, 1 × 3G-SDI
• HDMI formats: up to 4K30/25 and 1080p60
• 3G-SDI formats: up to 1080p60
• Audio: PCM dual-channel
• Status display: 128 × 64 pixels
• Dimensions: 42 × 67 × 120mm
• Weight: 231g
• Input voltage: 9–16V
• Operating power: 4W

Materials & Construction

• Aluminium-alloy housing
• Bottom 1/4-inch-20 mounting point
• Rotary channel-selection control and power switch
• External dual-antenna wireless design

What's Included

• 1 × Atomos RX 4K/HD Wireless Video Monitoring Receiver
• 1 × 1m USB-A to USB-C 2.0 cable
• 2 × Wi-Fi antennas
• 5 × antenna tips
• 1 × 1/4-inch screw mount
• Quick Start Guide

Why Choose the Atomos RX

• Dual HDMI outputs can feed two displays from one wireless camera source
• 3G-SDI provides a professional receiving-end connection for monitors, recorders or switchers
• Compact NP-F-powered design suits director rigs and mobile video village setups

Perfect For

• Director and client monitors
• Wireless video village setups
• Feeding HDMI and SDI production equipment from a remote camera
• Location production where cabling is difficult

Compatibility

Requires a compatible Atomos TX transmitter. Actual range varies with line of sight, RF congestion and the production environment. Choose HDMI or SDI output according to the supported format of the connected monitor, recorder or switcher.
