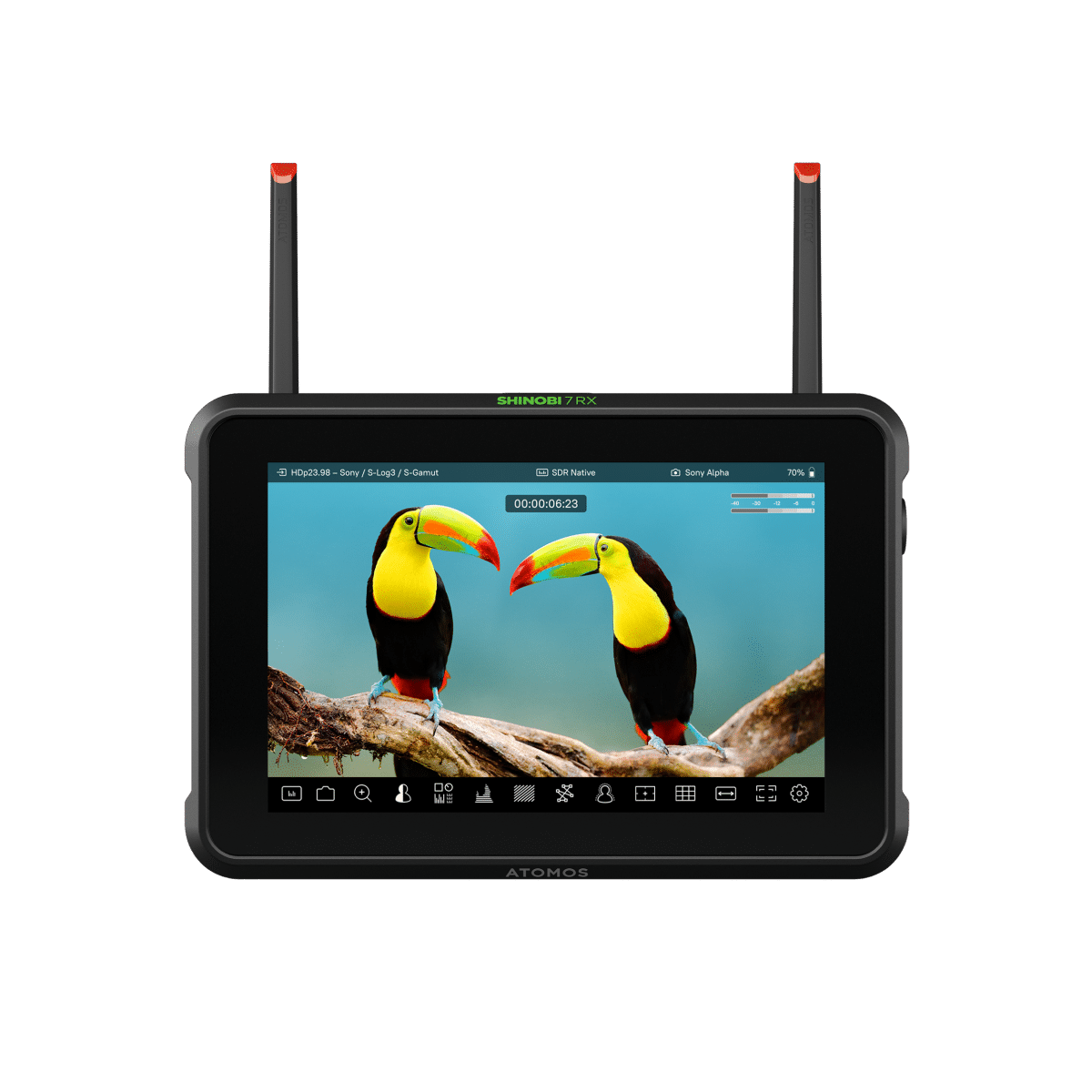

Atomos Shinobi 7 RX

Atomos Shinobi 7 RX

A 7-inch 2200-nit HDR production monitor with 3G-SDI, Wi-Fi 6, USB-C power/control and integrated wireless-video receiving for compatible Atomos TX workflows.

Shinobi 7 RX is designed for directors, focus pullers, camera operators and creators who need a larger daylight-viewable monitor without external recording. Its 1920 × 1200 16:10 panel reaches 2200 nits, while HDMI and 3G-SDI monitoring, dual USB-C connectivity and professional scopes give it the flexibility to sit on-camera or off-camera in a production rig.

Key Features

• 7-inch 1920 × 1200 HDR touchscreen
• 2200-nit calibrated peak brightness
• HDMI plus 3G-SDI production monitoring
• Integrated 5GHz wireless video receiver for compatible Atomos TX workflows
• Wi-Fi 6 connectivity
• USB-C camera control and supported touch-to-focus
• Professional waveform, histogram, vectorscope, RGB parade, false colour/EL Zone, zebra and focus-peaking tools
• Dual NP-F battery slots plus USB-C PD power

Display Specifications

• Size: 7-inch
• Resolution: 1920 × 1200
• Aspect Ratio: 16:10
• Brightness: 2200 nits
• Colour Gamut: Rec.709
• Video Processing: 8/10-bit video workflows
• Backlight: edge-lit

Video & Connectivity

• SDI: 1 × 3G-SDI
• 4K DCI/UHD Monitoring: up to 60p via supported input paths
• 1080p Monitoring: up to 120p
• USB: 2 × USB-C 2.0/3.0
• Wireless: Wi-Fi 6 plus integrated wireless-video receive capability
• LANC: supported
• Audio: 2-channel 24-bit HDMI and 8-channel 24-bit SDI monitoring; 3.5mm headphone output

Physical & Power Specifications

• Dimensions: 198 × 133 × 39mm
• Weight: 580g excluding batteries and antennas
• Body: ABS polycarbonate
• Cooling: heat sink plus actively controlled fan
• Mounting: anti-rotation 1/4-inch mounting points top and bottom
• Input Voltage: 6.2–16.8V
• Operating Power: 26W
• Power: NP-F battery or USB-C PD; USB PD input requires a 45W-capable supply
• USB PD Output: up to 13W

Perfect For

• Focus pulling and director monitoring
• On-camera 7-inch monitoring
• Wireless-video setups using compatible Atomos TX hardware
• Bright outdoor and location production

Compatibility Note

Wireless receiving, camera control and touch-to-focus depend on compatible Atomos and camera hardware. Confirm your TX system, camera model and required connection before ordering.
