Atomos Shinobi II

Atomos Shinobi II

Atomos Shinobi II gives mirrorless and video shooters a lightweight 5.2-inch 1500-nit monitoring screen with professional scopes, custom LUT support and USB-C camera control on supported cameras, without adding the cost or weight of an external recorder.

The 1920 × 1080 SuperAtom IPS panel provides waveform, vectorscope, histogram, RGB parade, false colour/EL Zone, zebra and focus peaking for exposure and focus decisions. Custom .Cube LUTs can be loaded by SD card and stored in eight on-device slots.

At approximately 210g, Shinobi II is compact enough for small camera rigs. USB-C control can support record trigger, white balance, shutter, aperture, ISO and touch-to-focus on compatible cameras, and the monitor can provide up to 13W USB-C PD output to supported camera bodies.

Key Features

• 5.2-inch 1920 × 1080 SuperAtom IPS touchscreen
• 1500-nit brightness
• 10-bit display processing using 8+2 FRC

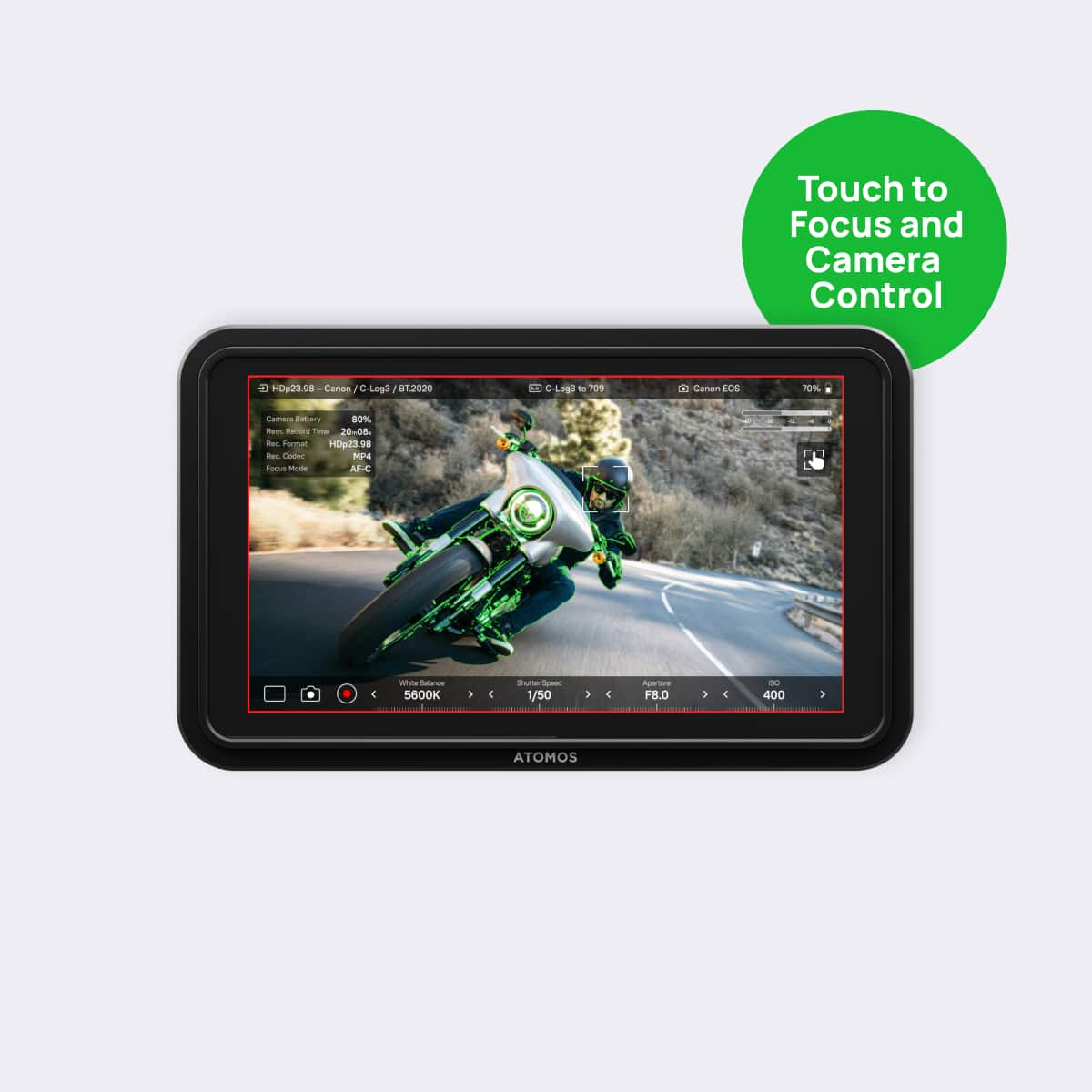

• USB-C camera control and touch-to-focus on supported cameras
• Waveform, vectorscope, histogram, RGB parade, false colour/EL Zone, zebra and focus peaking
• Eight on-device .Cube LUT slots
• USB-C PD output up to 13W to compatible cameras

Specifications

• Brand: Atomos
• Display: 5.2-inch SuperAtom IPS capacitive touchscreen
• Resolution: 1920 × 1080
• Brightness: 1500 nits
• Viewing angle: 178° horizontal and vertical
• Pixel density: 427ppi
• Bit depth: 10-bit via 8+2 FRC
• HDMI input: HDMI 1.4
• 4K monitoring: up to 30p
• Full HD monitoring: up to 60p
• Dimensions: 151 × 91.5 × 20.8mm
• Weight: approximately 210g

Materials & Construction

• ABS polycarbonate body
• Passive heat-sink cooling
• Bottom 1/4-inch-20 anti-rotation mount
• Locking HDMI and USB-C cable-adaptor support

What's Included

• 1 × Shinobi II monitor
• USB-C 2.0 cable
• HDMI + USB-C locking cable adaptor
• Quick Start Guide

Why Choose the Atomos Shinobi II

• Adds a bright, accurate monitoring surface without external recording hardware
• Supported camera control can place common settings directly on the monitor
• Scopes, LUTs and focus aids provide significantly more monitoring information than a basic camera LCD

Perfect For

• Mirrorless-camera video rigs
• Outdoor monitoring
• Log and HDR preview using LUTs
• Creators who want camera control and scopes but do not need external recording

Compatibility

Camera-control functions vary by camera model and firmware. Shinobi II is a monitor only and does not record video. Confirm your camera's HDMI output and Atomos camera-control compatibility before purchasing.
