Atomos Shogun AV-19

Atomos Shogun AV-19

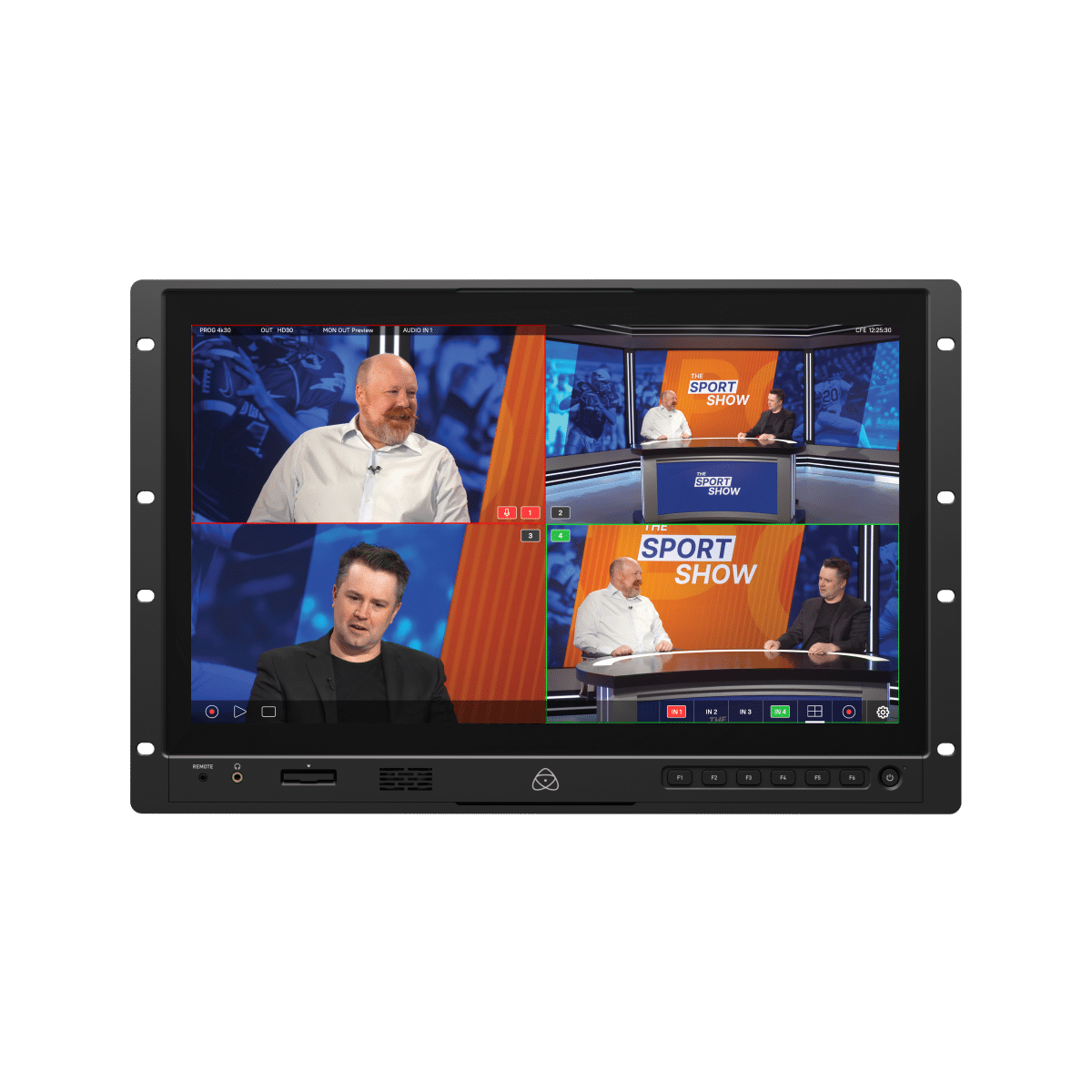

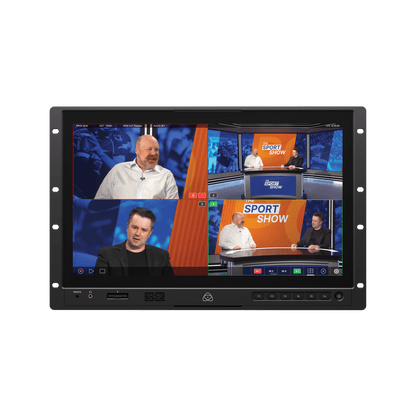

A 19-inch 4K UHD rackmount monitor-recorder-switcher combining 1200-nit HDR monitoring, four-source SDI production, professional XLR audio and connected studio workflows in one 7RU system.

Shogun AV-19 is designed for video village, studio, live-production and broadcast environments where a large calibrated display must also handle recording and switching. Its 3840 × 2160 panel covers 100% Rec.709 and approximately 99% DCI-P3, while two 12G-SDI plus two 3G-SDI inputs support multi-camera production. HDMI 2.0, SDI conversion, Ethernet, USB and balanced XLR audio make it substantially more than a display.

Key Features

• 19-inch 3840 × 2160 4K UHD touchscreen
• 1200-nit brightness with 10-bit (8+2 FRC) panel processing
• 100% Rec.709 and approximately 99% DCI-P3 colour coverage
• 2 × 12G-SDI plus 2 × 3G-SDI inputs for professional multi-camera workflows
• HDMI 2.0 input/output up to 4K60p
• HDMI-to-SDI and SDI-to-HDMI signal conversion
• 2 × balanced XLR inputs and 2 × balanced XLR outputs
• Professional monitor tools, LUT workflows and HDR conversion
• Rackmount-ready 7RU chassis

Display Specifications

• Size: 19-inch
• Resolution: 3840 × 2160 4K UHD
• Brightness: 1200 nits
• Bit Depth: 10-bit (8+2 FRC)
• Aspect Ratio: 16:9
• Colour Coverage: 100% Rec.709, 99% DCI-P3, 99% NTSC, 87% BT.2020
• 3D LUTs: .Cube format, 17- and 33-point support
• Monitoring Modes: Native, HLG, PQ and 3D LUT

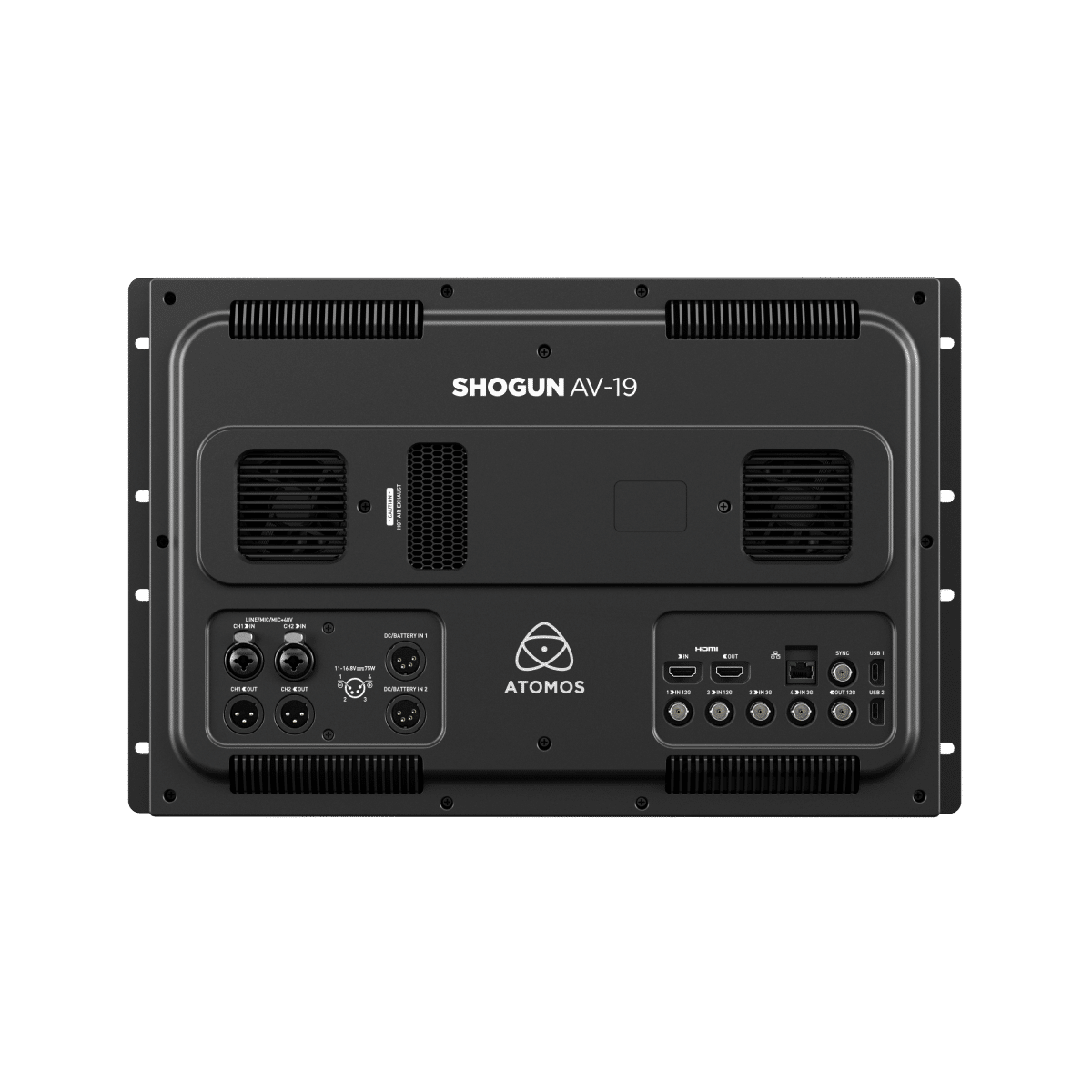

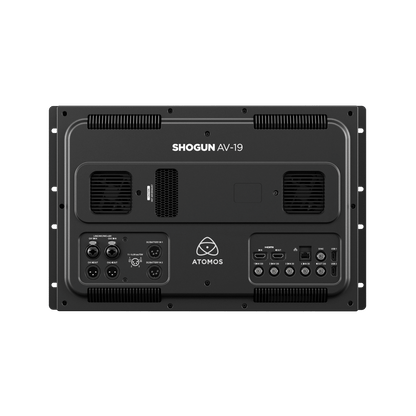

Video & Network Connectivity

• HDMI Input: 1 × HDMI 2.0 up to 4K60p
• HDMI Output: 1 × HDMI 2.0 up to 4K60p
• SDI Inputs: 2 × 12G-SDI plus 2 × 3G-SDI
• SDI Loop Output: 1 × 12G-SDI
• USB: 2 × USB-C 2.0/3.0
• Ethernet: 1 × RJ45
• LANC: supported
• Signal Conversion: HDMI-to-SDI and SDI-to-HDMI

Professional Audio

• Audio Quality: 24-bit / 48kHz PCM
• Analogue Inputs: 2 × 3-pin XLR female with 48V phantom power support
• Analogue Outputs: 2 × 3-pin XLR male
• Embedded Audio: up to 8-channel HDMI / 12-channel SDI
• Monitoring: built-in confidence speaker and 3.5mm headphone output

Physical & Power Specifications

• Dimensions: 482 × 310 × 60mm
• Weight: 5.22kg
• Rack Height: 7RU
• Construction: aluminium with ABS plastic
• Cooling: actively controlled fan and heat sink
• Input Voltage: 12–16.8V DC
• Operating Power: 75W
• DC Input: 4-pin XLR
• Operating Temperature: up to 40°C

Perfect For

• Video village and DIT monitoring
• Broadcast and multicamera production
• Live events and studio switching
• Professional XLR-audio capture and monitoring

Compatibility Note

Supported camera control, RAW formats and metadata vary by camera and firmware. Confirm your camera outputs, recording format requirements and rack/power configuration before purchase.
