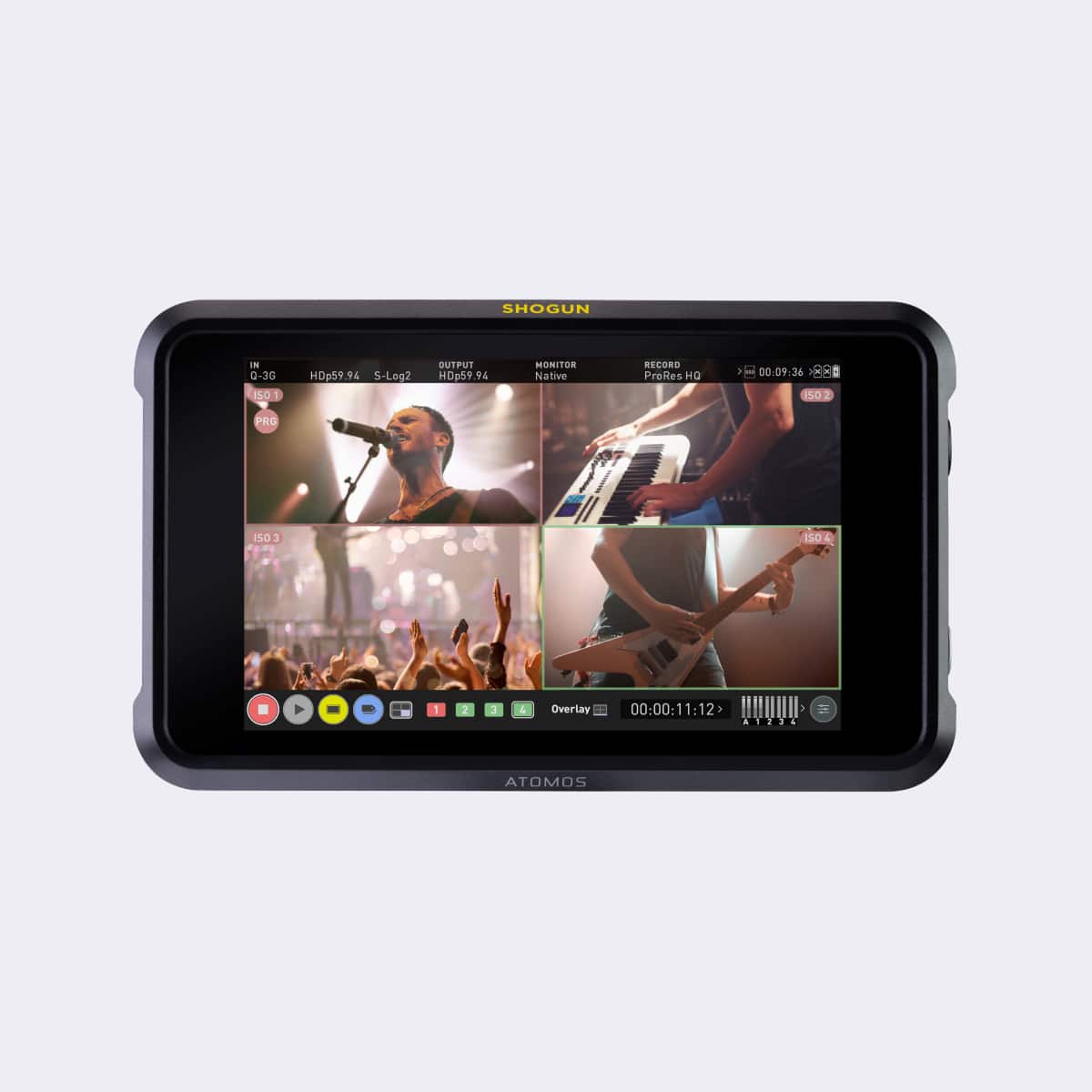

Atomos Shogun Classic 7-inch HDR Monitor-Recorder-Switcher

Atomos Shogun Classic 7-inch HDR Monitor-Recorder-Switcher

Shogun Classic combines a 7.2-inch 3000-nit HDR display, HDMI 2.0, dual 12G-SDI and four-input HD-SDI switching in a portable recorder designed for cinema, live production and multicamera field work.

The 1920 × 1200 IPS panel uses zone backlighting and covers up to 105% DCI-P3, giving operators a bright 10-bit monitoring surface for HDR and log workflows. It can record DCI/UHD 4K up to 60p and HD up to 120p via supported inputs, with Apple ProRes and Avid DNx codec families available.

For multicamera production, Shogun Classic can switch four HD-SDI inputs and record four isolated feeds plus the program output. HDMI-to-SDI and SDI-to-HDMI conversion is supported, making it useful as both a recorder and a signal-conversion point in mixed rigs.

Key Features

• 7.2-inch 1920 × 1200 HDR touchscreen
• 3000-nit peak brightness
• Up to 105% DCI-P3 colour gamut
• HDMI 2.0 plus 2 × 12G-SDI
• DCI/UHD 4K recording up to 60p
• 1080p recording up to 120p over SDI
• Four-input HD-SDI switching
• Four ISO feeds plus program recording

Display & Physical Specifications

• Display: 7.2-inch IPS capacitive touchscreen
• Resolution: 1920 × 1200
• Brightness: 3000 nits ±10%
• Bit Depth: 10-bit (8+2 FRC)
• Colour Gamut: Up to 105% DCI-P3
• Dimensions: 214 × 127 × 45mm
• Weight: 738g
• Body: Glass-fibre-reinforced polycarbonate
• Mounting: 1/4-inch-20 top and bottom

Video & Audio

• HDMI: 1 × HDMI 2.0
• SDI: 2 × 12G-SDI, backward compatible
• 4K DCI/UHD: Up to 60p
• 1080p: Up to 120p via SDI
• Audio: 24-bit / 48kHz PCM
• HDMI Audio: 2 or 8 channels, source dependent
• SDI Audio: Up to 12 channels
• Analogue Input: Via optional 2-in/2-out XLR cable
• Headphones: 3.5mm output

Recording & Media

• Apple ProRes: HQ, 422 and LT
• Avid DNxHD: 220x, 220, 145 and 36
• Avid DNxHR: HQX, HQ, SQ and LB
• Media: Master Caddy II, Master Caddy III and SSDmini
• File System: exFAT
• Interface: SATA 3.0

What's Included

• Shogun Classic
• 1 × Master Caddy II
• 12V 3A AC power supply
• Carry case
• Quick Start Guide

Compatibility

Input, recording and RAW capability depend on the connected camera and selected format. The optional XLR breakout cable is required for balanced analogue audio input. Check media and camera compatibility before configuring a recording workflow.

Perfect For

• Cinema and HDR field monitoring
• Four-camera HD switching
• Event and broadcast production
• Mixed HDMI/SDI camera rigs
