Atomos StudioSonic Shotgun Microphone

Atomos StudioSonic Shotgun Microphone

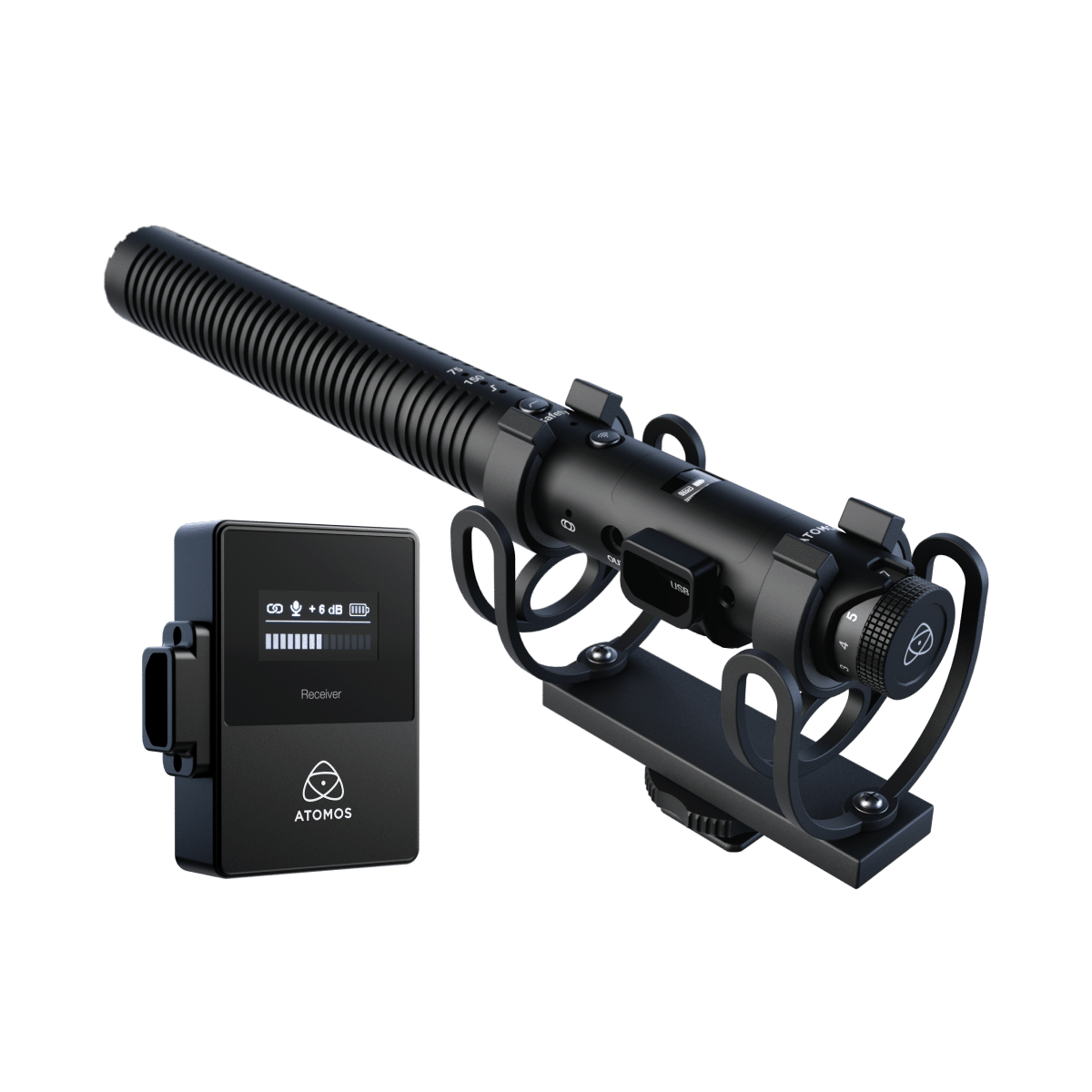

The Atomos StudioSonic Shotgun Microphone combines a supercardioid 20Hz–20kHz production microphone with a dedicated 2.4GHz receiver, allowing the same mic to work wirelessly, over analogue 3.5mm or through 48kHz/24-bit USB-C audio.

The 224mm aluminium microphone is designed to concentrate pickup toward the subject while rejecting more off-axis sound than an omnidirectional design. Low-cut and high-frequency boost options help tailor location dialogue, while up to 130dB SPL handling provides headroom for louder sources.

Wireless mode uses the supplied receiver with less than 20ms specified sound delay. The microphone can also run directly over cable for longer battery life, and its internal battery is rated differently by mode: approximately 32–50 hours wired, 8–10 hours wireless and around 5 hours when using onboard recording.

Key Features

• Supercardioid shotgun pickup pattern
• 20Hz–20kHz frequency response
• 2.4GHz wireless receiver included
• Less than 20ms specified wireless audio delay
• 48kHz/24-bit USB-C digital output
• 3.5mm TRS/TRRS analogue output
• 100Hz low-cut and 10kHz high-frequency boost
• Up to 130dB SPL maximum input

Audio Specifications

• Polar Pattern: Supercardioid
• Frequency Response: 20Hz–20kHz
• Low-Cut: -3dB at 100Hz
• High-Frequency Boost: +3dB at 10kHz
• Sensitivity: -38dB to -18dB re 1V/Pa
• Output Impedance: 600Ω
• S/N Ratio: 75dB SPL A-weighted
• Equivalent Noise: 19dB SPL A-weighted
• Maximum SPL: 130dB SPL at 1% THD
• Dynamic Range: 111dB SPL A-weighted

Wireless & Connection Specifications

• Wireless Band: 2.4GHz
• Transmit Power: +10dBm
• Receiver Sensitivity: -96dBm
• Wireless Delay: <20ms
• Analogue Output: 3.5mm TRRS/TRS
• Digital Output: USB-C, 48kHz/24-bit

Physical & Battery Specifications

• Microphone: Ø22 × 224mm; 94g; aluminium alloy

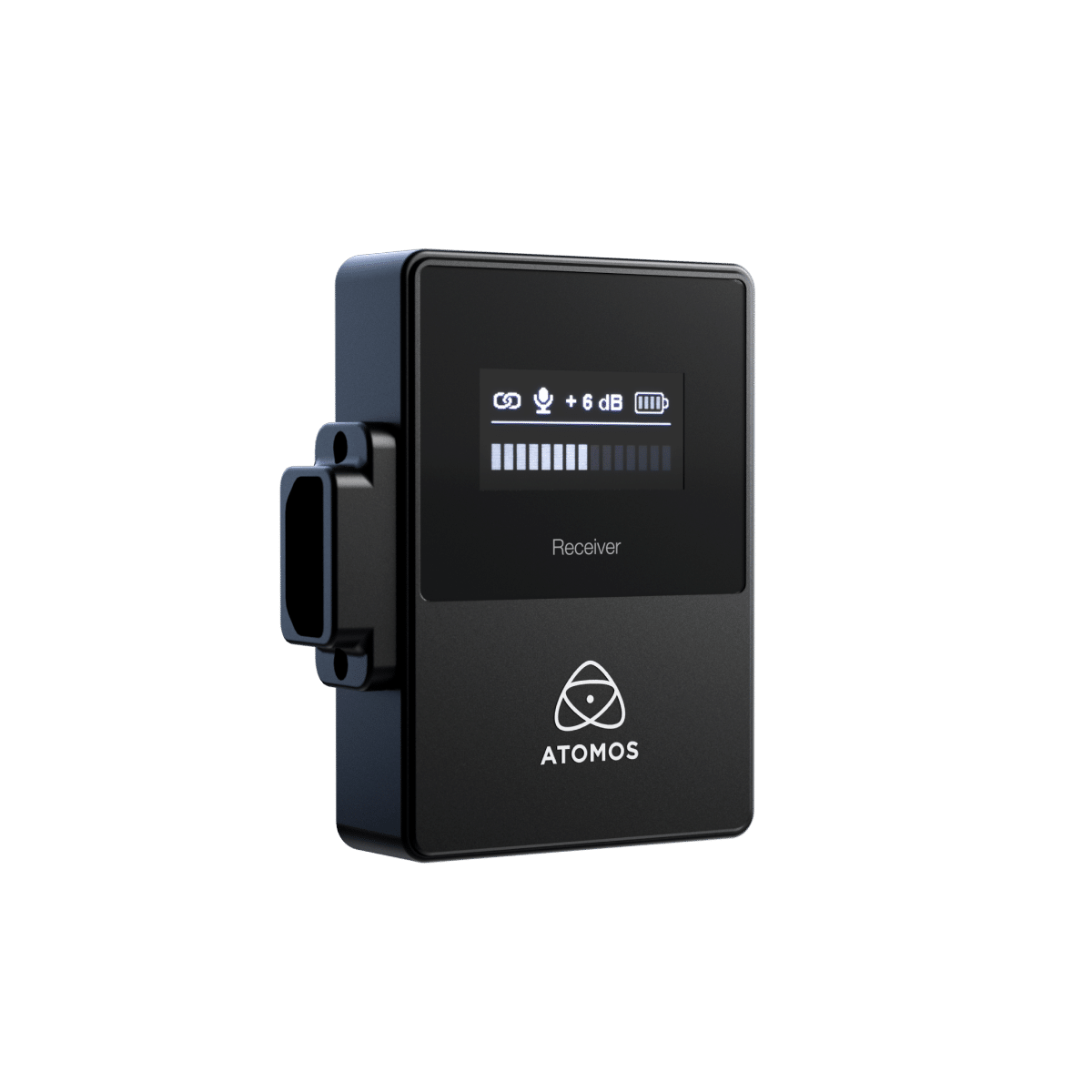

• Receiver: 54 × 48 × 22mm; 29.5g; ABS
• Microphone Battery: 3.7V 350mAh Li-polymer
• Receiver Battery: 3.7V 330mAh Li-polymer
• Microphone Runtime: 32–50h wired; 8–10h wireless; about 5h onboard recording
• Receiver Runtime: Approximately 8h

What's Included

• StudioSonic Shotgun Microphone
• 2.4GHz receiver with USB locking connector
• Atomos USB-C to USB-C locking cable
• 3.5mm TRS cable
• Furry windshield and foam windscreen
• Adjustable pole mount
• Atomos Quick Release mount
• Protective case

Compatibility

Choose analogue, USB-C or wireless operation according to the connected camera, recorder or computer. USB-C digital audio requires a compatible host, while wireless operation uses the supplied Atomos receiver.

Perfect For

• Dialogue and interview capture
• Camera-mounted location sound
• Boom or stand-mounted recording
• USB-C production and creator workflows
