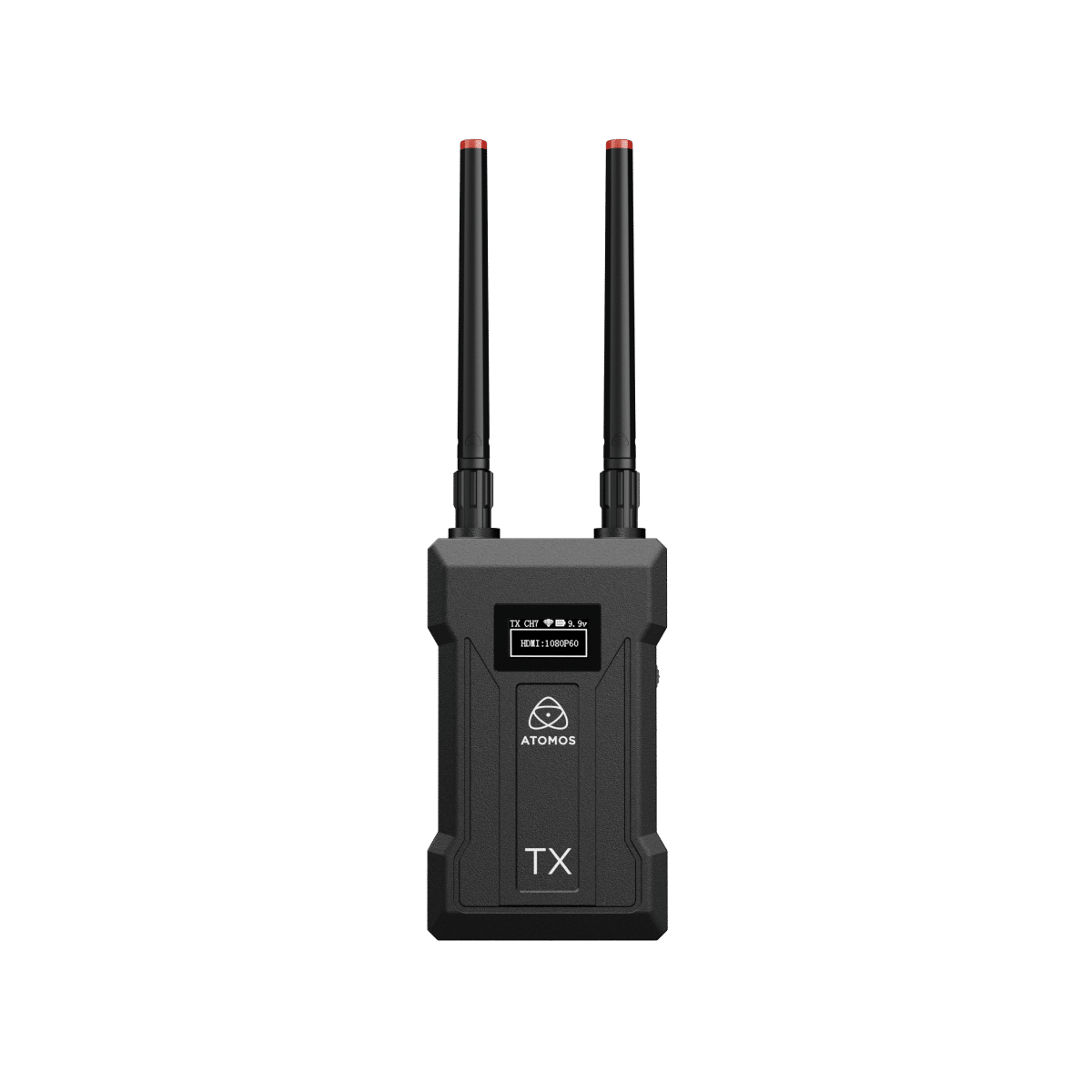

Atomos TX 4K/HD Wireless Video Monitoring Transmitter

Atomos TX 4K/HD Wireless Video Monitoring Transmitter

The Atomos TX sends camera video wirelessly over the 5GHz band to compatible Atomos RX receivers, supporting HDMI input up to 4K30 and 3G-SDI input up to 1080p60 with a rated line-of-sight range of up to 300 metres.

Designed as the transmitter half of the Atomos TX-RX system, it accepts one HDMI input with HDMI loop-through plus one 3G-SDI input. A compact 128 × 64 status display and rotary channel control provide local setup, while nine selectable wireless channels help crews coordinate multiple systems on set.

The aluminium housing weighs 231g and can be powered from common NP-F550, NP-F750 or NP-F970 batteries, or from a 9–16V external supply. Atomos specifies approximately 60ms system latency under supported conditions.

Key Features

• 5GHz wireless video transmitter
• Up to 300m / 985ft line-of-sight transmission range
• Approximately 60ms latency
• Nine selectable wireless channels, CH0–CH08
• HDMI input up to 4K30
• 3G-SDI input up to 1080p60
• HDMI loop-through for local monitoring
• NP-F battery compatibility

Video & Connection Specifications

• HDMI: 1 × input plus 1 × loop-through
• 3G-SDI: 1 × input
• HDMI Formats: Up to 4K30/25 and 1080p60
• 3G-SDI Formats: Up to 1080p60
• Audio: PCM dual-channel
• Wireless Band: 5GHz
• Channels: 9

Physical & Power Specifications

• Dimensions: 42 × 67 × 120mm
• Weight: 231g
• Body: Aluminium alloy
• Mount: 1 × 1/4-inch-20 on base
• Input Voltage: 9–16V
• Operating Power: 4W
• Compatible Batteries: NP-F550, NP-F750 and NP-F970
• Operating Temperature: Up to 50°C

What's Included

• Atomos TX wireless video transmitter
• 1m USB-A to USB-C 2.0 cable
• 2 × Wi-Fi antennas
• 5 × antenna tips
• 1/4-inch screw mount
• Quick Start Guide

Compatibility

TX requires a compatible Atomos RX receiver for wireless monitoring. Actual range depends on line of sight, RF congestion and the production environment. 4K wireless operation is supported over HDMI; the SDI path is limited to supported HD formats.

Perfect For

• Director and client monitoring
• Wireless camera feeds on location
• Gimbal and handheld camera rigs
• Sets where long HDMI or SDI cable runs are impractical

Shipping Information

Please allow up to 4 to 12 BUSINESS days for delivery. For accurate shipping times, please check our shipping policy here.

Refunds & Returns

Returns are accepted within 30 days in line with our returns policy. Please check our returns policy before purchasing for full eligibility requirements.

Need help planning a wireless video setup?

Contact CameraHUB before ordering if you need help matching the TX to a receiver, camera output or monitoring configuration.
