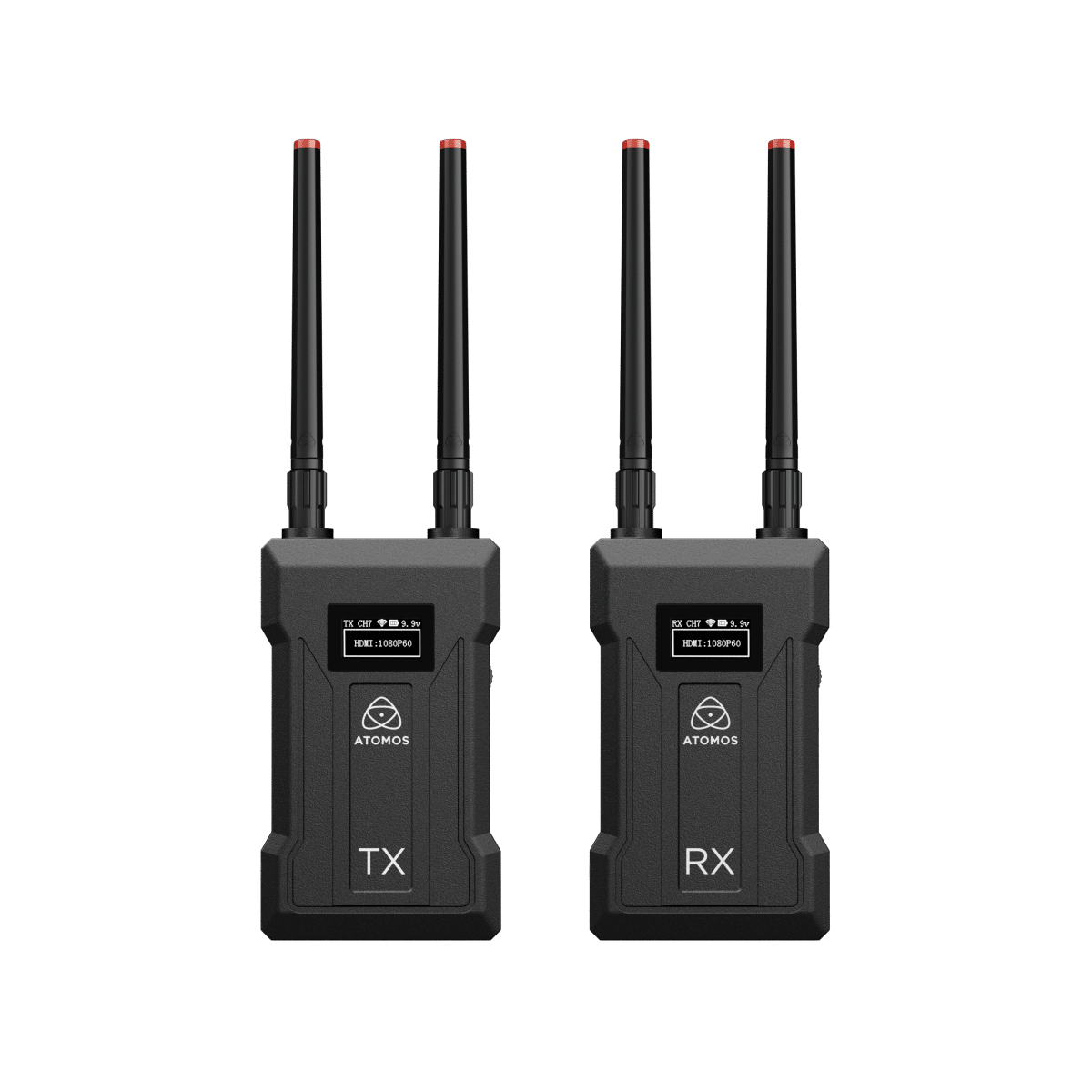

Atomos TX-RX 4K/HD Wireless Video Monitoring Set

Atomos TX-RX 4K/HD Wireless Video Monitoring Set

Atomos TX-RX gives productions a complete camera-to-monitor wireless link in one kit, pairing a 5GHz transmitter and receiver with HDMI support up to 4K30, 3G-SDI support up to 1080p60 and a rated line-of-sight range of up to 300m.

The transmitter accepts HDMI or 3G-SDI and retains an HDMI loop-through for local monitoring. At the receiving end, two HDMI outputs plus one 3G-SDI output let a single wireless feed reach a director display, client monitor, recorder or switcher without forcing identical connections at both ends.

Both units use aluminium housings, weigh 231g each and support NP-F batteries, 9–16V DC or supported USB-C power, making the complete system practical for both mobile and fixed monitoring positions.

Key Features

• Complete TX and RX wireless video pair
• HDMI formats up to 4K30
• 3G-SDI formats up to 1080p60
• Up to 300m / 985ft rated line-of-sight range
• Approximately 60ms system latency
• Nine selectable 5GHz channels
• AES-128 encrypted transmission
• PCM dual-channel audio
• NP-F550, NP-F750 and NP-F970 battery compatibility

Specifications

• Brand: Atomos
• Wireless band: 5GHz
• Channels: 9 (CH0–CH08)
• Transmission distance: up to 300m line of sight
• Latency: approximately 60ms
• TX connections: 1 × HDMI input, 1 × HDMI loop-through, 1 × 3G-SDI input
• RX connections: 2 × HDMI outputs, 1 × 3G-SDI output
• HDMI formats: up to 4K30/25 and 1080p60
• 3G-SDI formats: up to 1080p60
• Dimensions: 42 × 67 × 120mm per unit
• Weight: 231g per unit
• Input voltage: 9–16V
• Operating power: 4W per unit

Materials & Construction

• Aluminium-alloy transmitter and receiver housings
• Bottom 1/4-inch-20 mount on each unit
• Rotary channel-selection controls
• External antenna design for the 5GHz link

What's Included

• 1 × Atomos TX wireless transmitter
• 1 × Atomos RX wireless receiver
• 2 × 1m USB-A to USB-C 2.0 cables
• 4 × Wi-Fi antennas
• 10 × antenna tips
• 2 × 1/4-inch screw mounts
• Quick Start Guide

Why Choose the Atomos TX-RX Set

• Provides the matched transmitter and receiver required for a complete wireless link
• Mixed HDMI and SDI connections make it easier to bridge mirrorless cameras and professional production equipment
• Dual HDMI outputs on the receiver can support more than one viewing position without another splitter

Perfect For

• Director and client monitoring
• Gimbal, Steadicam and handheld camera feeds
• Event and multicamera production
• Video village setups where physical camera-to-monitor cabling is impractical

Compatibility

Wireless performance depends on RF conditions and clear line of sight. 4K transmission is through supported HDMI formats; the 3G-SDI path supports HD formats up to 1080p60. Check the camera output and receiving equipment format before use.
