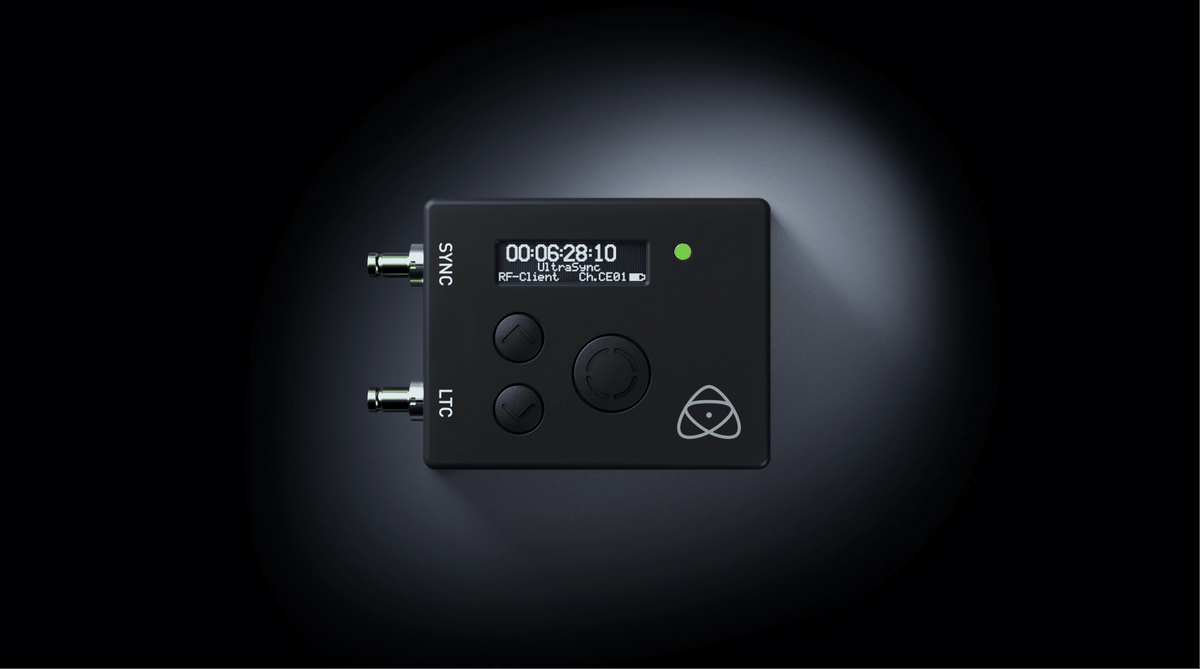

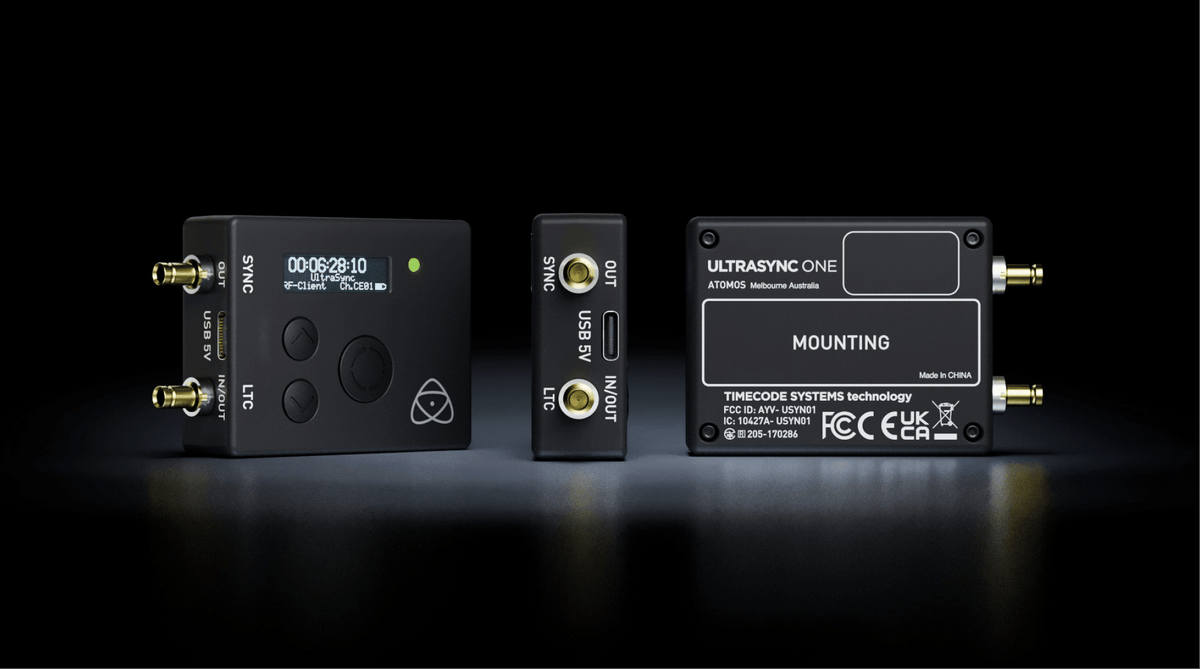

Atomos UltraSync One ROW Version

Atomos UltraSync One ROW Version

The Atomos UltraSync ONE is a 39g wireless timecode, genlock and word-clock synchronisation unit designed to keep cameras and audio recorders aligned across multicamera production without relying on a central cable loom.

Two locking Mini DIN 1.0/2.3 connectors provide timecode input/output plus genlock and word-clock output, while the long-range AirGlu RF network can operate up to 200 metres line of sight. When RF-locked to a server, Atomos specifies 0ppm timecode drift; when free-running, the 0.5ppm TCXO is rated at roughly one frame of drift over 24 hours.

The built-in 800mAh battery runs for more than 25 hours and charges over USB-C. The ROW version uses region-dependent RF frequencies and channels, so it should be operated only in regions where that variant is approved.

Key Features

• Wireless timecode synchronisation over AirGlu RF
• Timecode input and output
• Genlock and word-clock output
• Up to 200m RF line-of-sight range
• 0.5ppm free-running timecode accuracy
• 0ppm timecode drift while RF locked to server
• 25+ hour internal battery runtime
• Compact 55 × 44 × 17mm body

Timecode & Sync Specifications

• Wireless: AirGlu RF
• RF Range: Up to 200m line of sight
• RF Frequencies: 865.050–923.200MHz, region dependent
• RF Channels: Up to 14, region dependent
• Free-Run Accuracy: 0.5ppm, approximately one frame drift in 24 hours
• RF-Locked Accuracy: 0ppm
• Frame Rates: 23.976, 24, 25, 29.97, 29.97DF, 30 and 30DF
• Bluetooth: Not available

Connections & Physical Specifications

• Sync Connectors: 2 × Mini DIN 1.0/2.3
• USB: USB-C for charging and continuous power
• Dimensions: 55 × 44 × 17mm
• Weight: 39g
• Body: ABS polycarbonate
• Battery: Built-in 800mAh lithium-ion
• Runtime: 25+ hours
• Operating Power: Less than 1W

What's Included

• UltraSync ONE
• USB-C charging cable
• 2 × Mini DIN 1.0/2.3 to BNC cables

Compatibility

UltraSync ONE can join compatible AirGlu RF networks and connect to cameras or recorders through the appropriate timecode/genlock cable. The ROW radio version is region-specific; check local RF suitability and the connector required by each camera or audio recorder.

Perfect For

• Multicamera timecode synchronisation
• Camera and audio recorder sync
• Genlock-dependent production
• VR and multi-rig capture systems
