Kondor Blue Mini Pivot L Mount Bracket

Kondor Blue Mini Pivot L Mount Bracket

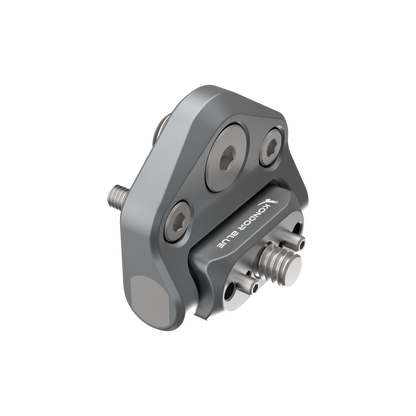

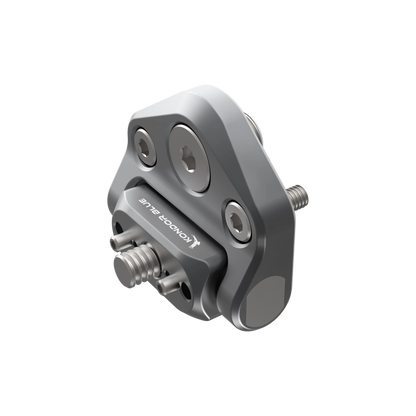

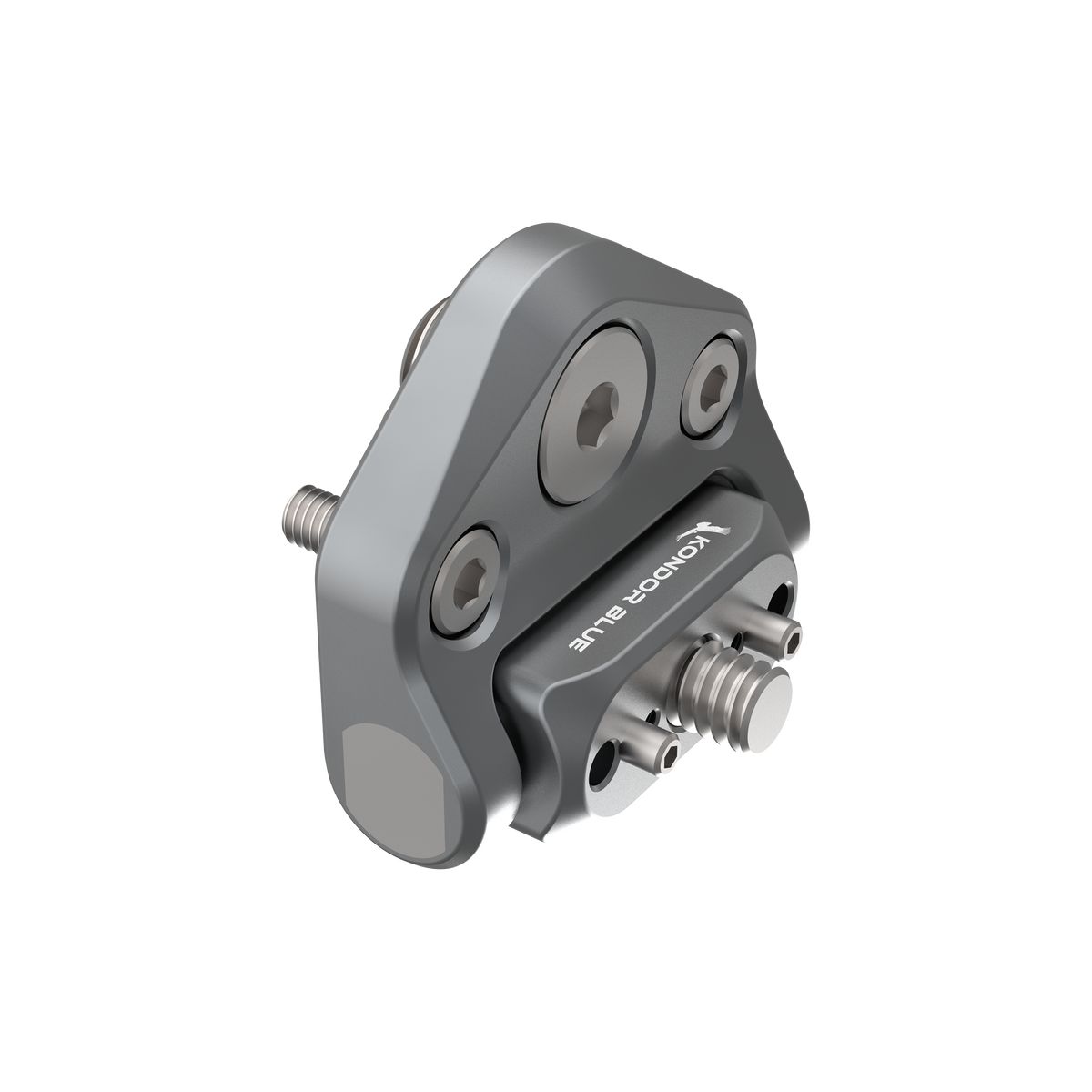

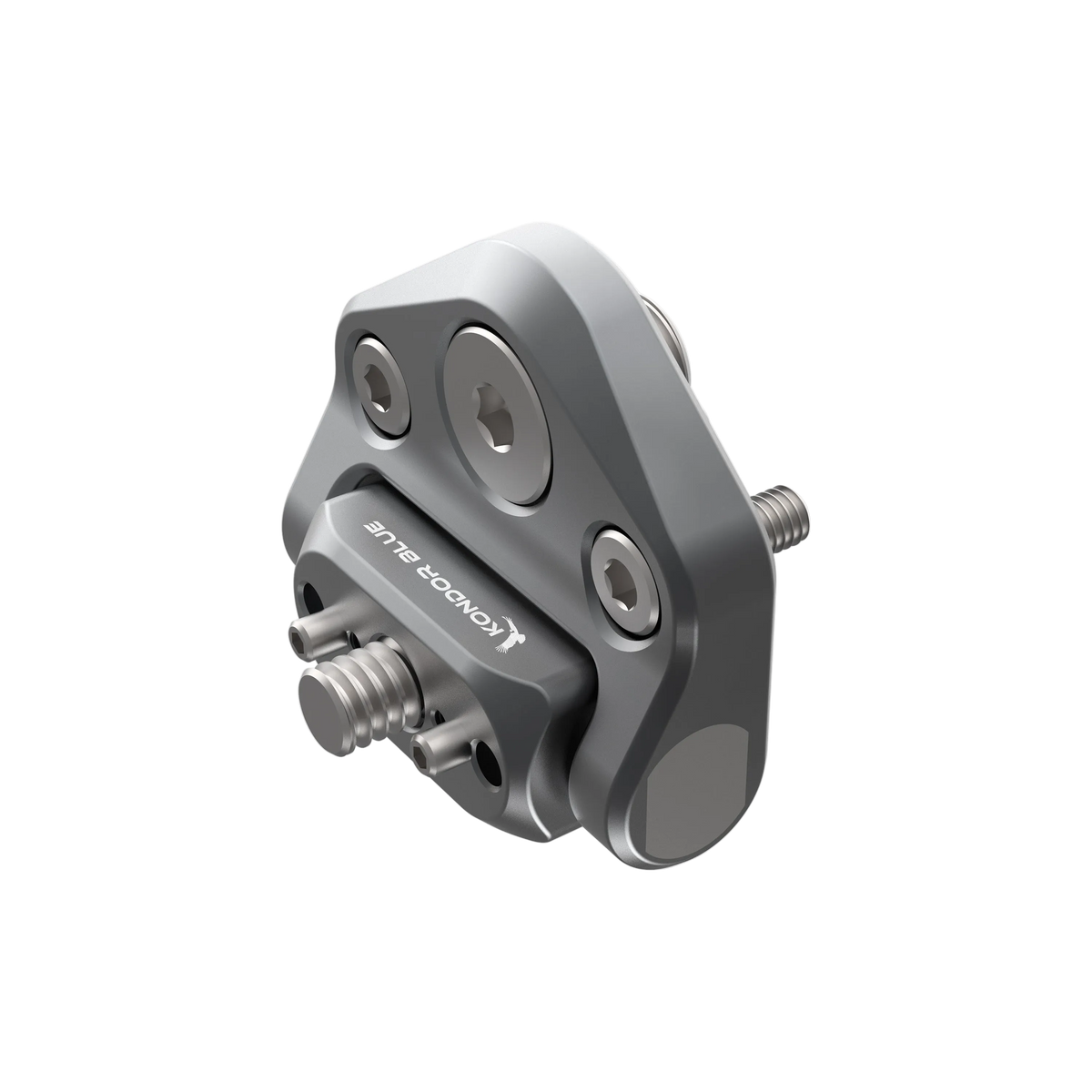

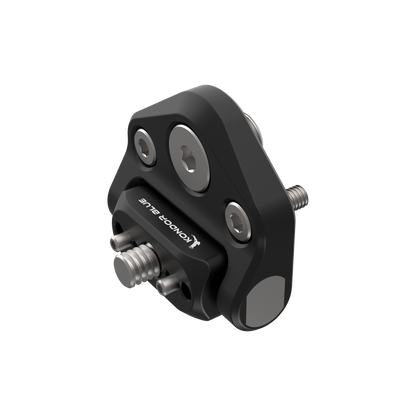

The Kondor Blue Mini Pivot L Mount Bracket creates a compact 90-degree mounting joint for battery plates, wireless transmitters and other rig accessories, using preset resistance instead of an exposed tightening knob.

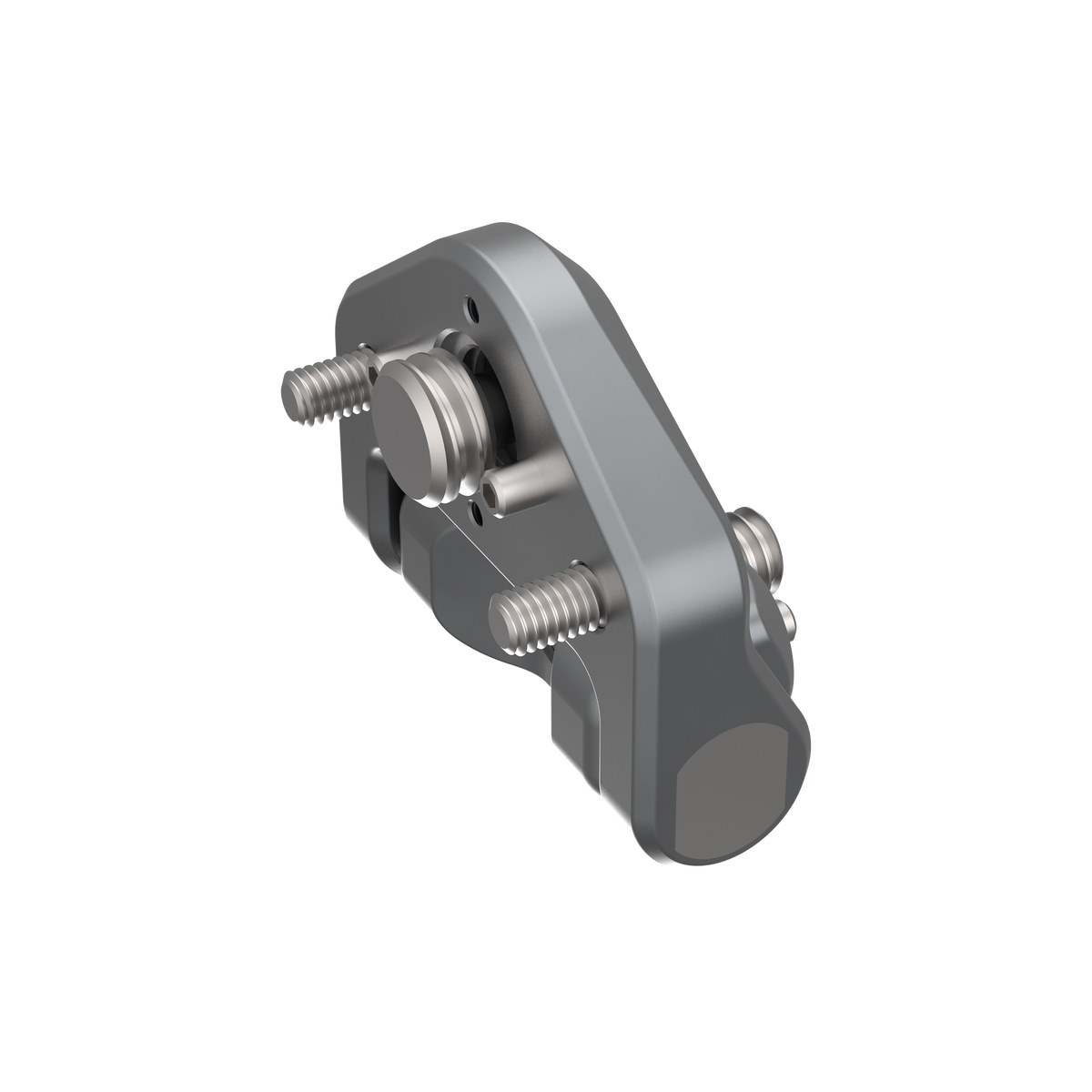

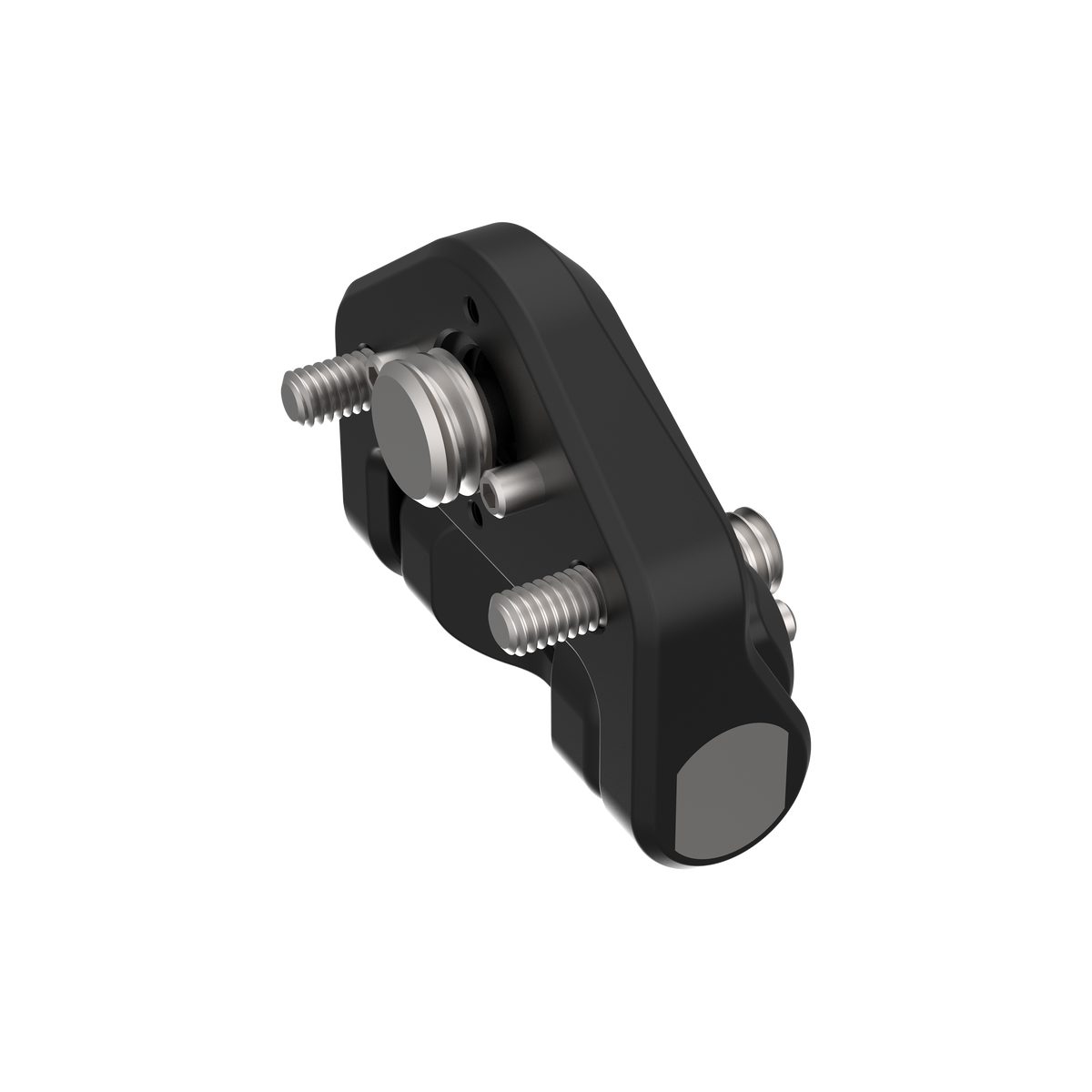

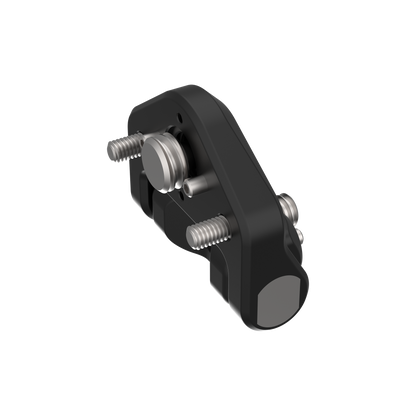

Both sides of the bracket pivot through a full right-angle swing with approximately 10 lb of preset tension. This lets an attached accessory fold closer to the camera for transport or reposition outward for operation while keeping the joint low-profile and free of adjustment levers.

The two mounting faces are deliberately different. One side uses a 1/4"-20 mount with removable, adjustable locating pins spanning approximately 10.4–15.0mm, while the opposite side uses a 3/8"-16 mount with removable ARRI locating pins. Optional M4 mounting points are also built in for direct integration with compatible Kondor Blue Pro Battery Plates.

Key Features

• Dual-sided pivot bracket with a full 90-degree swing in both directions
• Preset approximately 10 lb pivot tension with no external knob required
• 1/4"-20 mounting side with removable and adjustable locating pins
• Locating-pin spacing adjusts from approximately 10.4 to 15.0mm
• 3/8"-16 mounting side with removable ARRI locating pins
• Optional M4 mounting points for compatible Kondor Blue Pro Battery Plates
• Designed to mount accessories without requiring a 15mm rod system

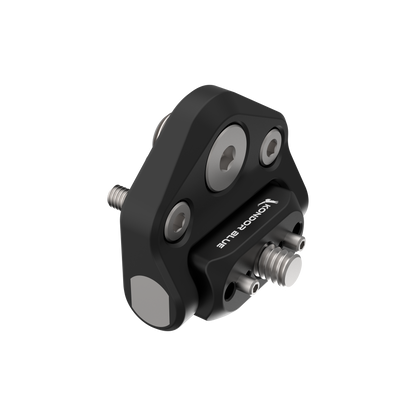

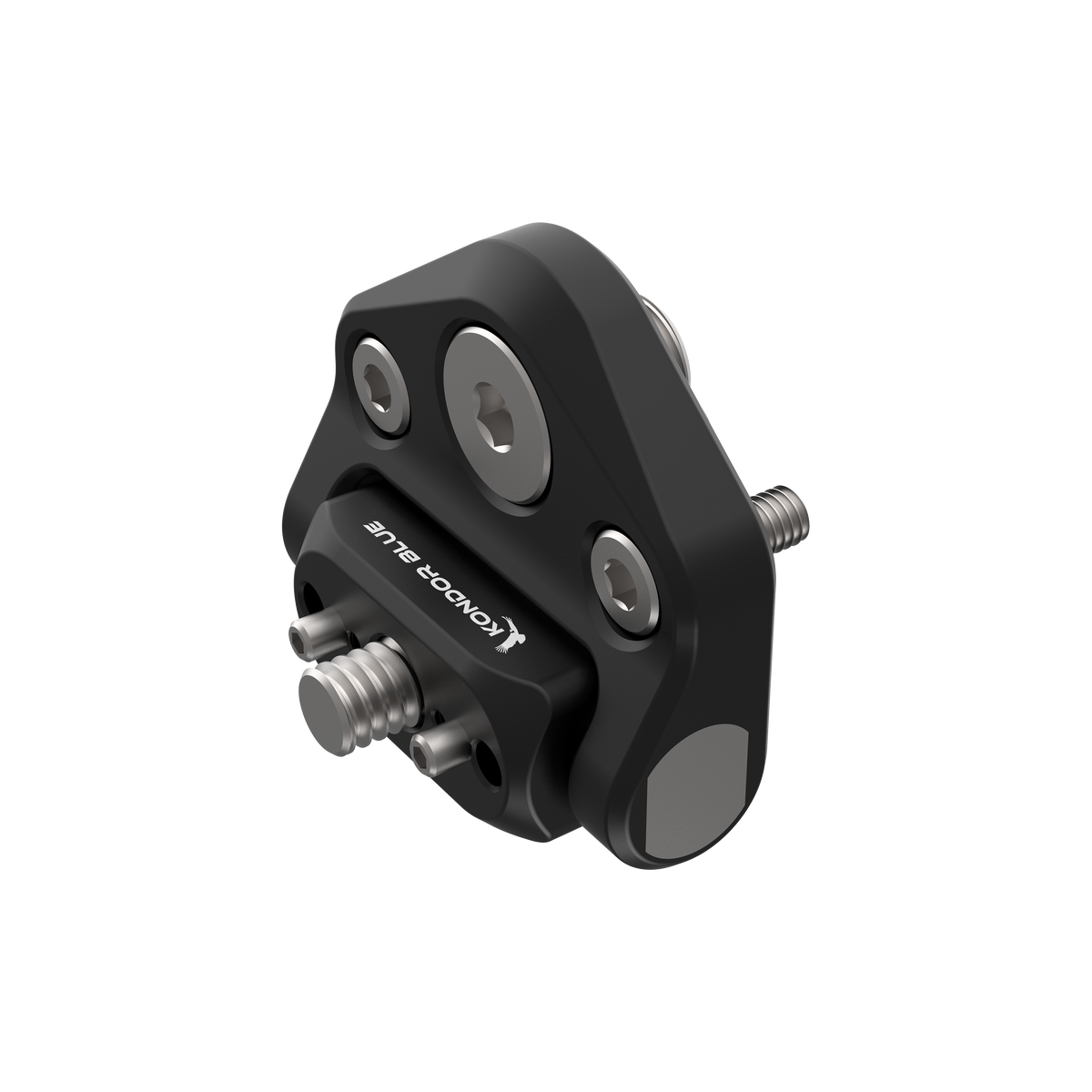

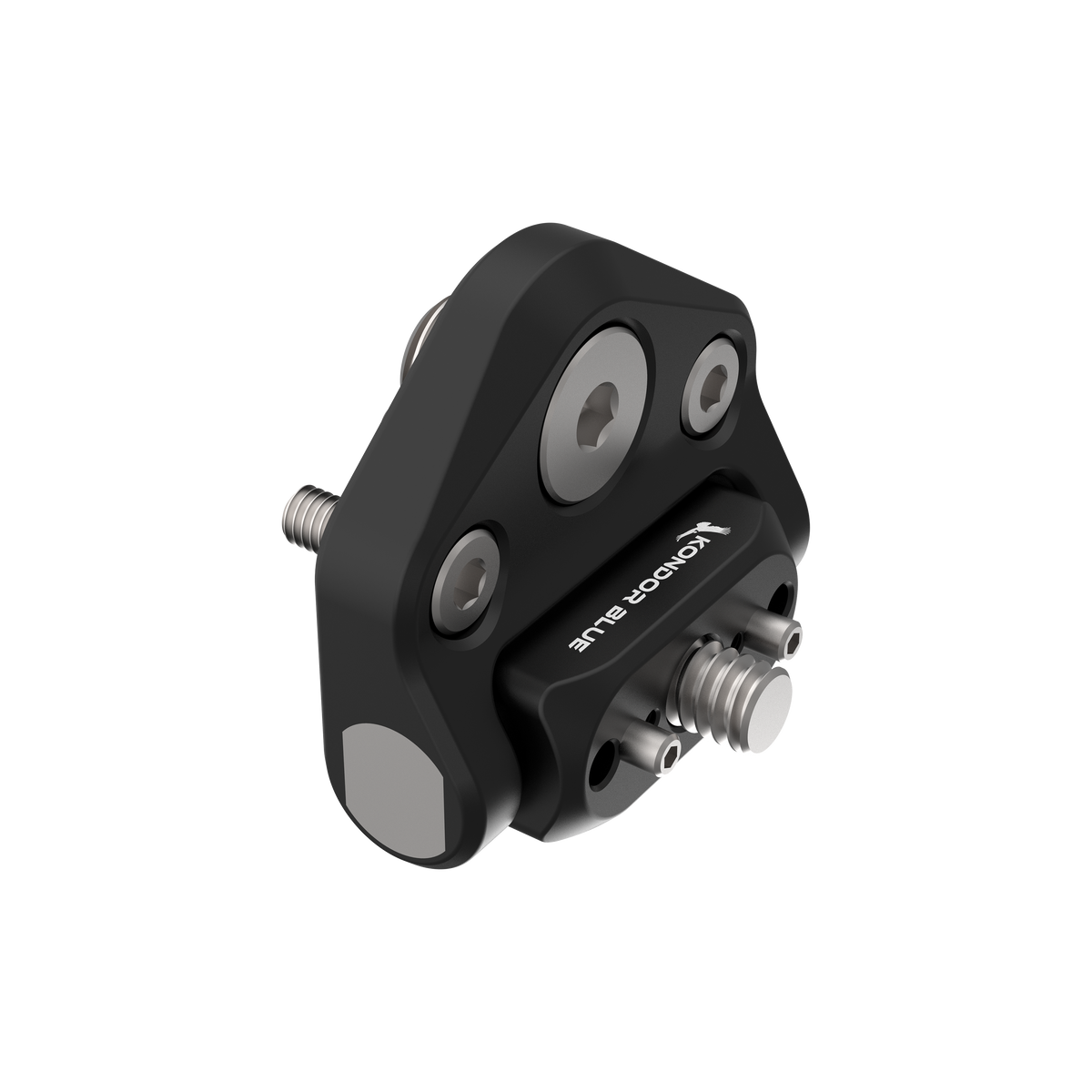

• Available in Raven Black and Space Gray

What's Included

• 1 × Kondor Blue Mini Pivot L Mount Bracket in the selected colour

Why Choose the Kondor Blue Mini Pivot L Mount Bracket

• Lets a battery plate or transmitter pivot around the camera rather than being fixed in one orientation
• ARRI-style and 1/4"-20 anti-twist interfaces cover two common cinema-rig mounting standards in one small bracket
• Direct M4 integration can create a cleaner battery-plate build without adding rods and a separate rod clamp

Perfect For

• Mounting Kondor Blue Pro Battery Plates directly to compatible cages and rig components
• Wireless video transmitters that need a compact repositionable mounting point
• Camera builds where a rod-free battery or accessory solution reduces bulk

Compatibility

Use with compatible 1/4"-20 anti-twist, 3/8"-16 ARRI-pin or supported M4 mounting points. Check the locating-pin spacing and clearance of your camera cage, battery plate or accessory before ordering.
