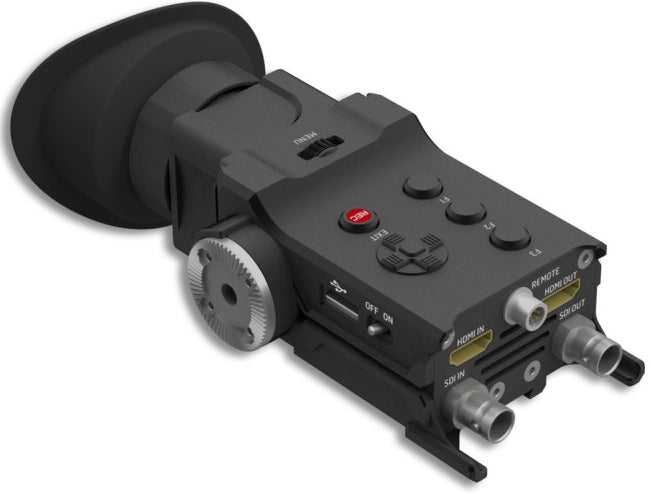

Portkeys OEYE-RED 4K HDMI/3G-SDI Electronic Viewfinder

The Portkeys OEYE-RED is a professional electronic viewfinder designed for RED DSMC2 camera workflows and other compatible video sources that require HDMI or 3G-SDI monitoring. Its 0.71-inch Full HD micro-OLED panel delivers deep contrast in a compact eyepiece format, with professional focus, exposure and LUT tools available directly in the EVF.

For cinema operators who prefer the stability and concentration of an eyepiece rather than an external monitor, the OEYE-RED adds professional signal connectivity and native RED DSMC2 menu control.

Key Features

• 0.71-inch 1920 × 1080 micro-OLED display
• 100,000:1 contrast ratio
• HDMI input/output up to DCI 4K24 / UHD 4K30
• 3G-SDI input/output up to 1080p60
• Native RED DSMC2 menu control via 5-pin connection
• Professional focus, exposure and LUT monitoring tools
• Diopter adjustment from +8 to -3
• 7–24V power input

Why Choose the OEYE-RED?

The OEYE-RED is aimed at cinema-camera operators who want a dedicated Full HD EVF with both SDI and HDMI connectivity, rather than relying solely on an external field monitor.

Key Specifications

• Display: 0.71-inch micro-OLED
• Resolution: 1920 × 1080
• Brightness: 200 nits
• Contrast: 100,000:1
• Colour depth: 8-bit
• Inputs/outputs: HDMI and 3G-SDI
• Diopter: +8 to -3
• Power: 7–24V

Available from CameraHUB Australia for professional cinema and RED DSMC2 production workflows.
